SKU: UKC208/H2308

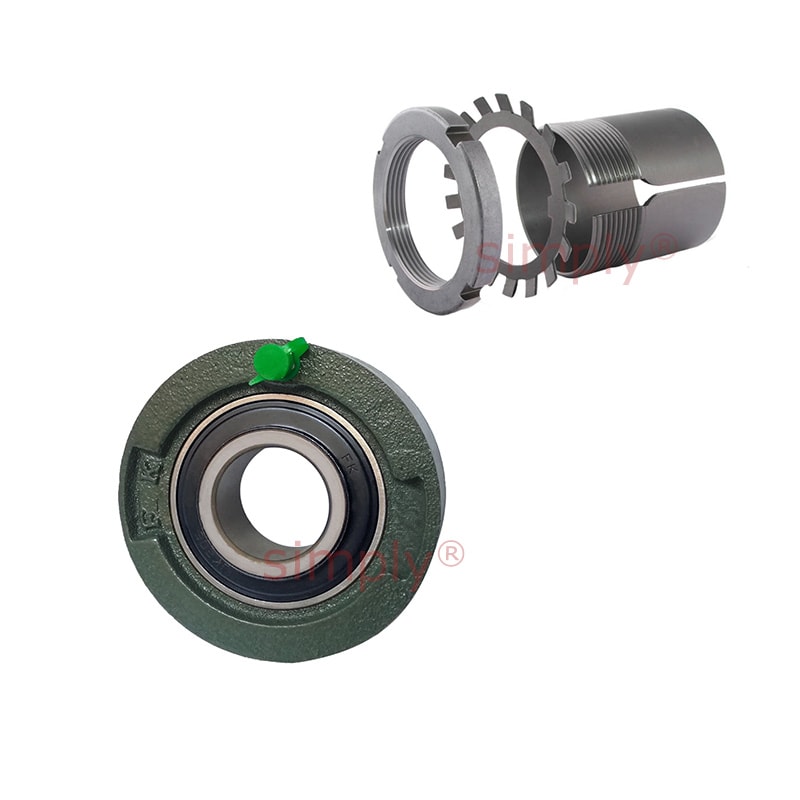

UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
- Regular price
- $56.60 ex VAT
- Sale price
- $56.60
- Regular price
-
In stock
Quantity Price Breaks
10+
$50.37
19+
$47.54
29+
$46.98
39+
$46.41
49+
$45.85
74+
$45.28
99+
$42.45
199+
$41.88
249+
$41.32
499+
$40.75
999+
$39.62
SKU:
UKC208/H2308
UKC208/H2308 Metric Cast Iron Medium Duty Cartridge Unit with Adaptor Sleeve Mounted and 35mm Bore Insert 100mm Outside Dia
- Regular price
- $56.60 ex VAT
- Sale price
- $56.60
- Regular price
-
Description

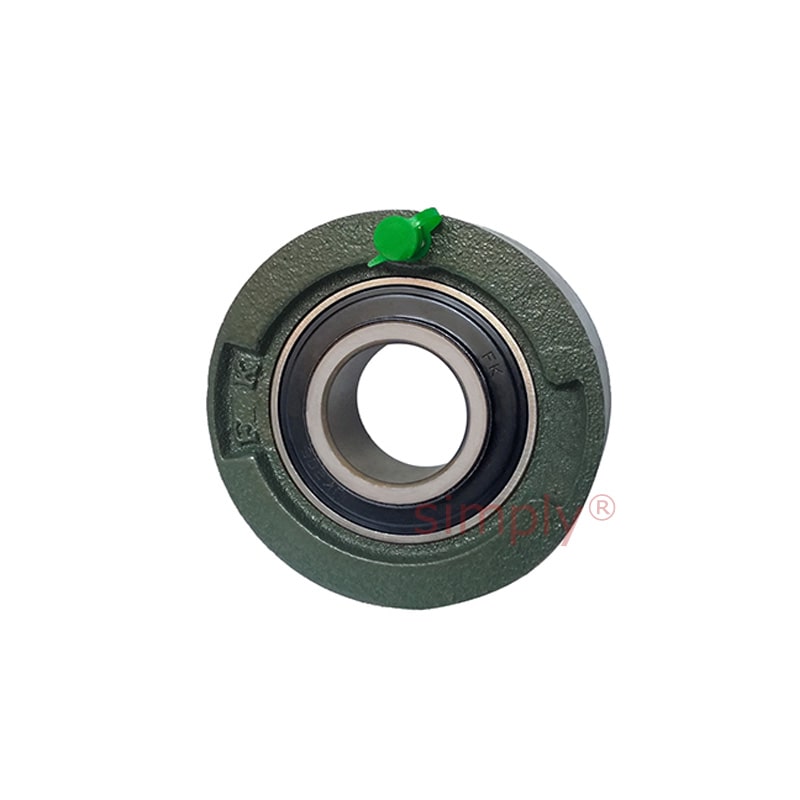

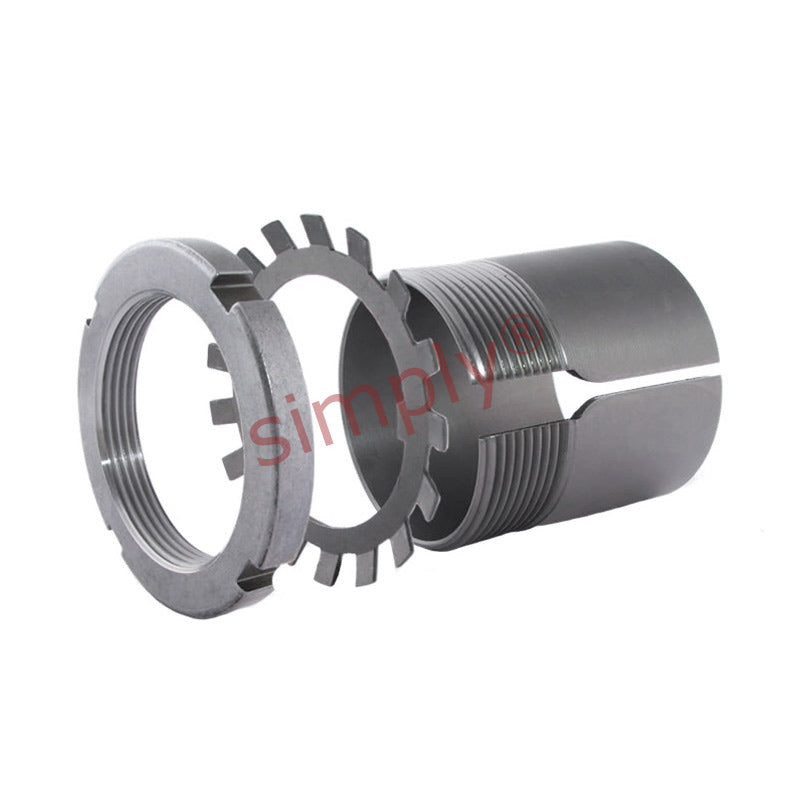

UKC Series (Medium Duty) Cartridge Bearing Unit with Adaptor Sleeve Mounted: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, full width insert

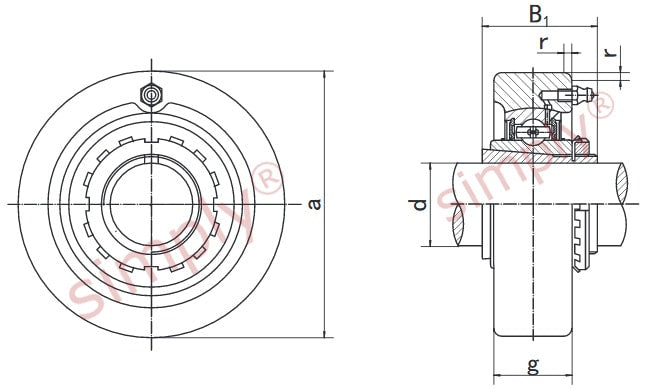

Technical
| Bore d | = | 35mm |
| Outer Dia a | = | 100mm |
| g | = | 30mm |
| r | = | 2.5mm |
| B | = | 46mm |
| Bearing No | = | UK208 |
| H2308 | = | Housing No |
| C208 | = | N/A |
