SKU: UJDN25X12-MB

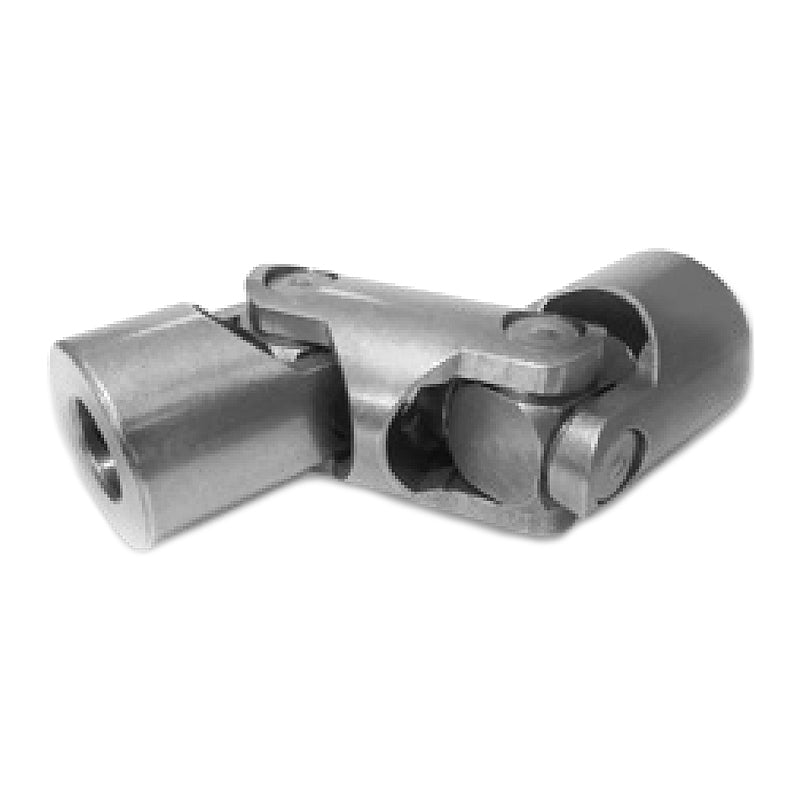

Major Brand UJDN25X12 Steel Universal Double Joint with Needle Roller Bearing 12x25x86mm
- Regular price
- $211.70 ex VAT
- Sale price
- $211.70
- Regular price
-
Quantity Price Breaks
Major Brand UJDN25X12 Steel Universal Double Joint with Needle Roller Bearing 12x25x86mm
- Regular price
- $211.70 ex VAT
- Sale price
- $211.70
- Regular price
-
Description
UJDN Steel Universal Double Joint with Needle Roller Bearing: A Universal Joint (U-joint, Cardan joint, Hooke’s joint) is a mechanical coupling that connects rotating shafts, allowing them to transmit torque even when misaligned. It features two hinges at 90 degrees to each other, connected by a cross shaft. This universal joint is double-jointed and is made of steel with a needle roller bearing. Commonly used in machinery drive shafts, they provide flexibility and accommodate misalignment while transmitting rotary motion and power. Double cardan joints use two-phased universal joints to reduce variations in angular velocity.
Benefits: High-quality, high-performance, adaptable to misaligned shafts
Technical
| Bore d H7 | = | 12mm |
| Diameter D | = | 25mm |
| Overall length L3 | = | 86mm |
| Pivot to face centre L1 | = | 28mm |
| Pivot to pivot centre L4 | = | 30mm |
| Hub length C | = | 13mm |
| Maximum working angle | = | 90 degrees |
| Maximum speed | = | 4000 rpm |
| Maximum power | = | 6kW |
| Maximum torque | = | 600 Nm |
| Weight KG | = | 0.25 kg |
