SKU: UELP209D1W3-NTN

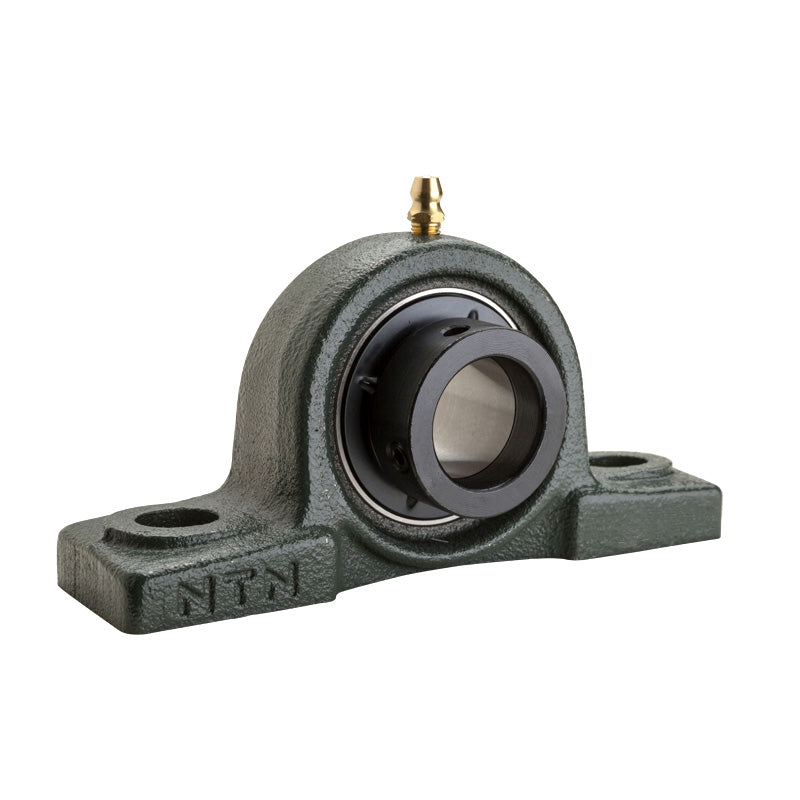

NTN UELP209D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- $66.82 ex VAT
- Sale price
- $66.82
- Regular price
-
In stock
Quantity Price Breaks
10+
$59.47
19+
$56.13
29+
$55.46
39+
$54.79
49+
$54.12
74+
$53.46
99+
$50.12
199+
$49.45
249+
$48.78
499+
$48.11
999+
$46.77
SKU:
UELP209D1W3-NTN
NTN UELP209D1W3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- $66.82 ex VAT
- Sale price
- $66.82
- Regular price
-
Description
UELP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

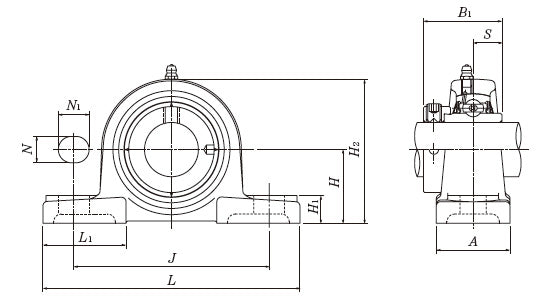

Technical
| Shaft diameter | = | 45mm |
| H | = | 54mm |
| L | = | 190mm |
| J | = | 146mm |
| A | = | 54mm |
| N | = | 17mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 20mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 20mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 106mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 60mm | |
| B< | = | sub> |
| 1< | = | /sub> |
| = | 56.3mm | |
| S | = | 21.4mm |
| Fixing bolt | = | M14 |
| Mass | = | 2.3 kg |
