SKU: UELFL205D1-NTN
NTN UELFL205D1 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- $41.58 ex VAT
- Sale price
- $41.58
- Regular price
-
In stock
Quantity Price Breaks
10+
$37.01
19+
$34.93
29+
$34.51
39+
$34.10
49+
$33.68
74+
$33.26
99+
$31.19
199+
$30.77
249+
$30.35
499+
$29.94
999+
$29.11
SKU:
UELFL205D1-NTN
NTN UELFL205D1 Metric Two Bolt Cast Iron Oval Housing with 25mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- $41.58 ex VAT
- Sale price
- $41.58
- Regular price
-
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing

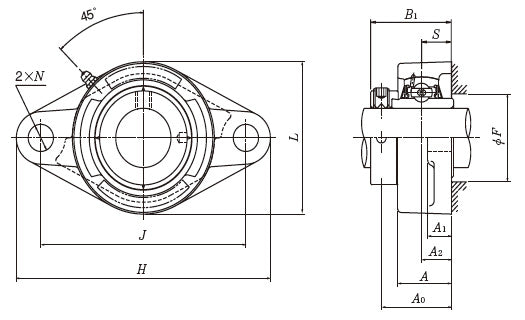

Technical
| Shaft diameter | = | 25mm |
| H | = | 130mm |
| J | = | 99mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 16mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 13mm | |
| A | = | 27mm |
| N | = | 16mm |
| L | = | 68mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 42.95mm | |
| B< | = | sub> |
| 1< | = | /sub> |
| = | 44.4mm | |
| S | = | 17.45mm |
| F min. | = | 38mm |
| Fixing bolt | = | M14 |
| Mass | = | 0.7 kg |
