SKU: UELF212D1W3-NTN

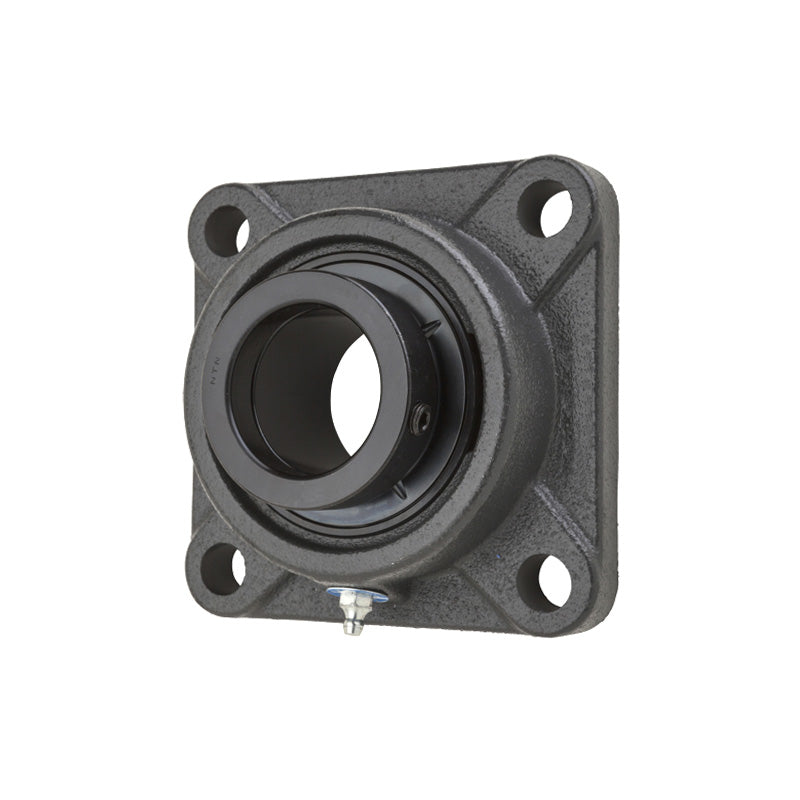

NTN UELF212D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- $110.47 ex VAT
- Sale price
- $110.47
- Regular price
-
In stock
Quantity Price Breaks
10+
$98.32
19+
$92.79
29+
$91.69
39+
$90.59
49+
$89.48
74+
$88.38
99+
$82.85
199+
$81.75
249+
$80.64
499+
$79.54
999+
$77.33
SKU:
UELF212D1W3-NTN
NTN UELF212D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- $110.47 ex VAT
- Sale price
- $110.47
- Regular price
-
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing

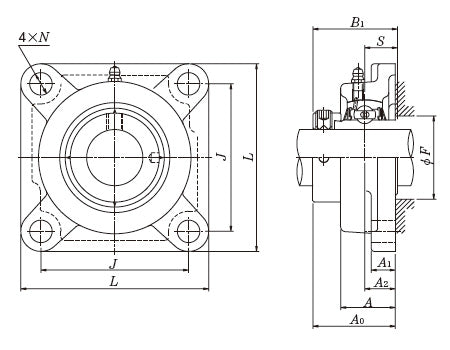

Technical
| Shaft diameter | = | 60mm |
| L | = | 175mm |
| J | = | 143mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 29mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 18mm | |
| A | = | 48mm |
| N | = | 19mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 75.85mm | |
| B< | = | sub> |
| 1< | = | /sub> |
| = | 77.8mm | |
| S | = | 30.95mm |
| F min. | = | 81mm |
| Fixing bolt | = | M16 |
| Mass | = | 4.2 kg |
