SKU: UELF210D1W3-NTN

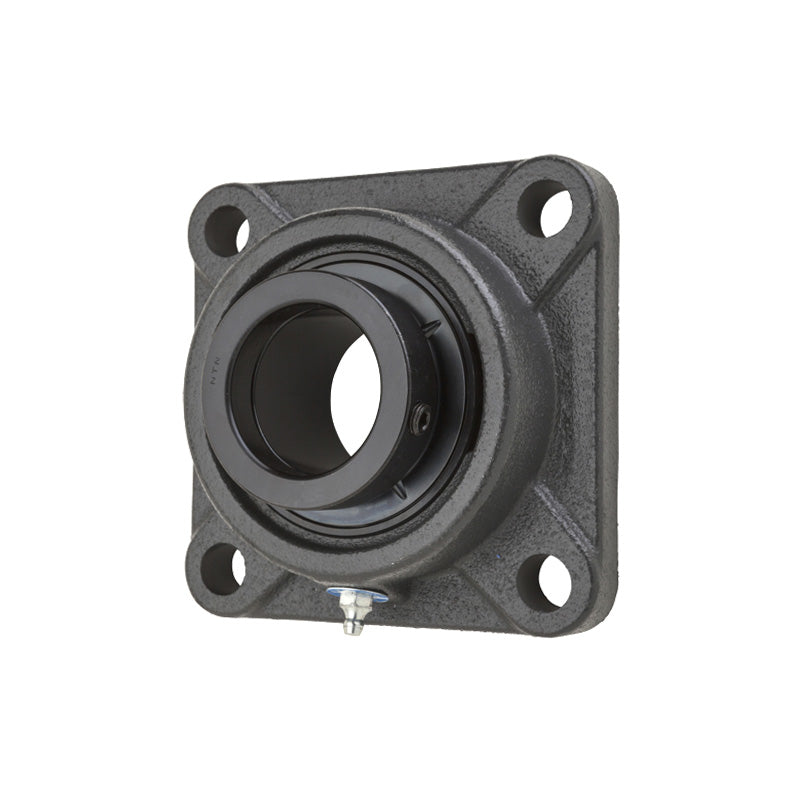

NTN UELF210D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- $77.50 ex VAT
- Sale price
- $77.50
- Regular price
-
In stock
Quantity Price Breaks
10+
$68.98
19+
$65.10
29+
$64.33
39+
$63.55
49+
$62.78
74+
$62.00
99+
$58.13
199+
$57.35
249+
$56.58
499+
$55.80
999+
$54.25
SKU:
UELF210D1W3-NTN
NTN UELF210D1W3 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- $77.50 ex VAT
- Sale price
- $77.50
- Regular price
-
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft diameter | = | 50mm |
| L | = | 143mm |
| J | = | 111mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 22mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 16mm | |
| A | = | 40mm |
| N | = | 16mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 60.1mm | |
| B< | = | sub> |
| 1< | = | /sub> |
| = | 62.7mm | |
| S | = | 24.6mm |
| F min. | = | 67mm |
| Fixing bolt | = | M14 |
| Mass | = | 2.7 kg |
