SKU: UCX.15-48.TS.CHAL

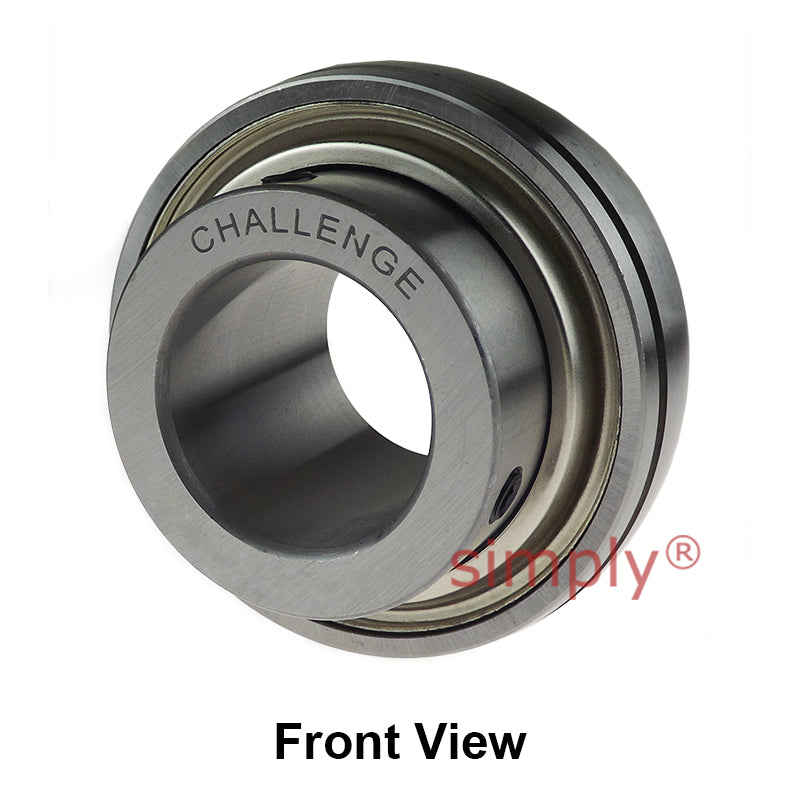

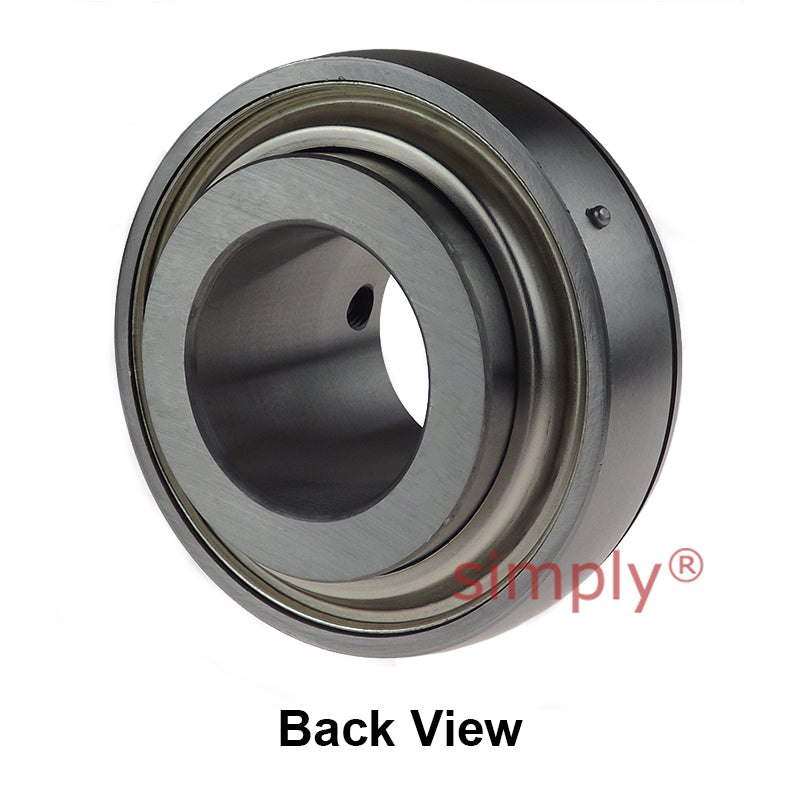

Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $241.70 ex VAT
- Sale price
- $241.70
- Regular price
-
In stock
Quantity Price Breaks
10+
$215.11
19+
$203.03
29+
$200.61
39+
$198.19
49+
$195.78
74+
$193.36
99+
$181.28
199+
$178.86
249+
$176.44
499+
$174.02
999+
$169.19
SKU:
UCX.15-48.TS.CHAL
Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $241.70 ex VAT
- Sale price
- $241.70
- Regular price
-
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 3 inch |
| Outside Diameter D | = | 140mm |
| Overall Width Bi | = | 82.6mm |
| Inner Race Width Be | = | 33mm |
| Back of Bearing to Centre Line n | = | 33.3mm |
| Front of Bearing to Centre Line m | = | 49.3mm |
| Dimension G | = | 12mm |
| Grub Screws x 2 | = | 7/16 - 24UNF inch |
| Load Rating (Dynamic) | = | 5700kg |
| Load Rating (Static) | = | 4550kg |
| Max Speed | = | 1200 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
