SKU: UCX.12.TS.CHAL

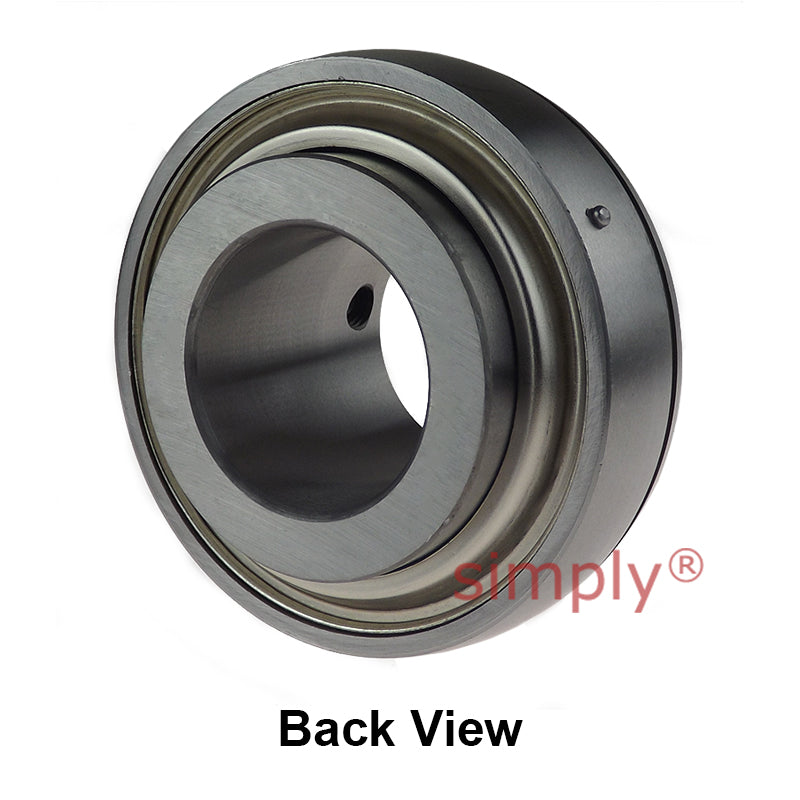

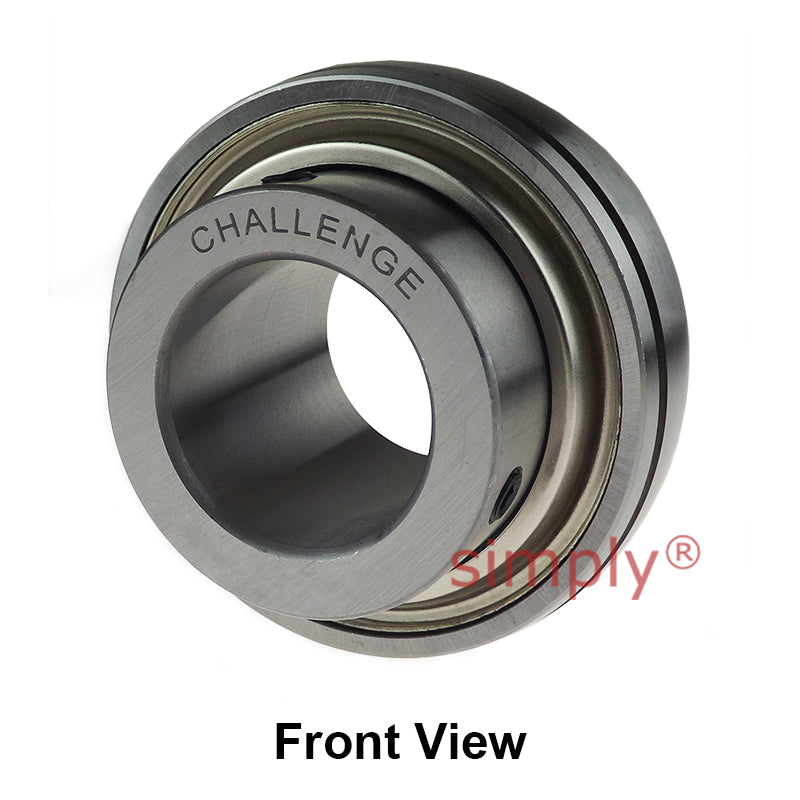

Challenge UCX12 Metric Insert with Grub Screws with 60mm Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $108.50 ex VAT
- Sale price
- $108.50
- Regular price
-
In stock
Quantity Price Breaks
10+
$96.57
19+
$91.14
29+
$90.06
39+
$88.97
49+
$87.89
74+
$86.80
99+
$81.38
199+
$80.29
249+
$79.21
499+
$78.12
999+
$75.95
SKU:
UCX.12.TS.CHAL
Challenge UCX12 Metric Insert with Grub Screws with 60mm Bore 120mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $108.50 ex VAT
- Sale price
- $108.50
- Regular price
-
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 60mm |
| Outside Diameter D | = | 120mm |
| Overall Width Bi | = | 65.1mm |
| Inner Race Width Be | = | 30mm |
| Back of Bearing to Centre Line n | = | 25.4mm |
| Front of Bearing to Centre Line m | = | 39.7mm |
| Dimension G | = | 10mm |
| Grub Screws x 2 | = | M10x1.25mm |
| Load Rating (Dynamic) | = | 4480kg |
| Load Rating (Static) | = | 3470kg |
| Max Speed | = | 1500 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
