SKU: UCX.09-28.TS.CHAL

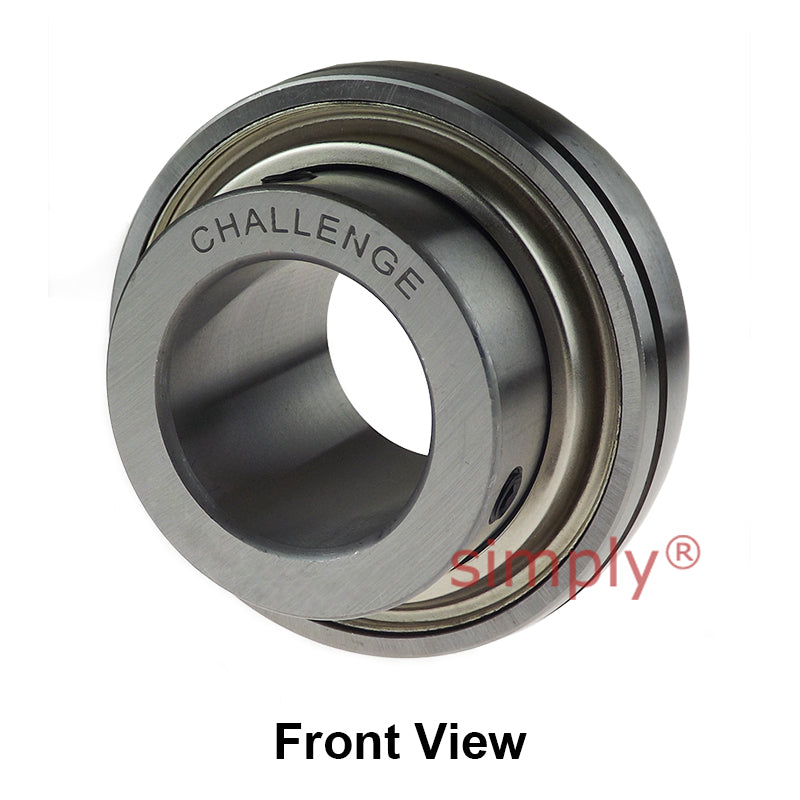

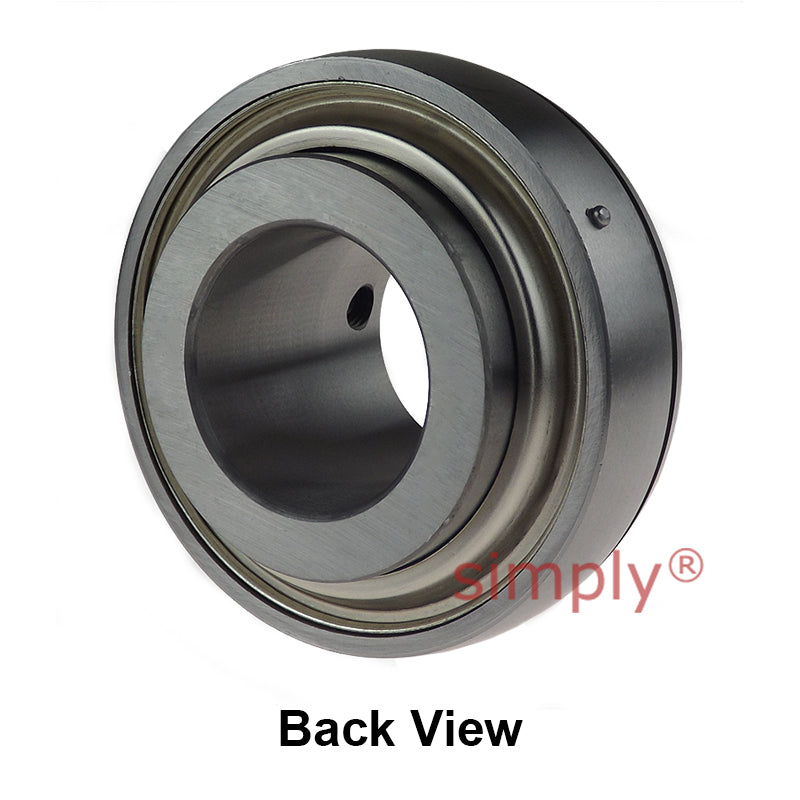

Challenge UCX09-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $68.74 ex VAT
- Sale price
- $68.74
- Regular price
-
In stock
Quantity Price Breaks
10+
$61.18
19+
$57.74
29+
$57.05
39+
$56.37
49+
$55.68
74+
$54.99
99+
$51.56
199+
$50.87
249+
$50.18
499+
$49.49
999+
$48.12
SKU:
UCX.09-28.TS.CHAL
Challenge UCX09-28 Imperial Insert with Grub Screws with 1-3/4 inch Bore 90mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $68.74 ex VAT
- Sale price
- $68.74
- Regular price
-
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 1-3/4 inch |
| Outside Diameter D | = | 90mm |
| Overall Width Bi | = | 51.6mm |
| Inner Race Width Be | = | 24mm |
| Back of Bearing to Centre Line n | = | 19mm |
| Front of Bearing to Centre Line m | = | 32.6mm |
| Dimension G | = | 10mm |
| Grub Screws x 2 | = | 5/16 - 24UNF inch |
| Load Rating (Dynamic) | = | 2750kg |
| Load Rating (Static) | = | 2020kg |
| Max Speed | = | 1900 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
