SKU: UCX.07.TS.CHAL

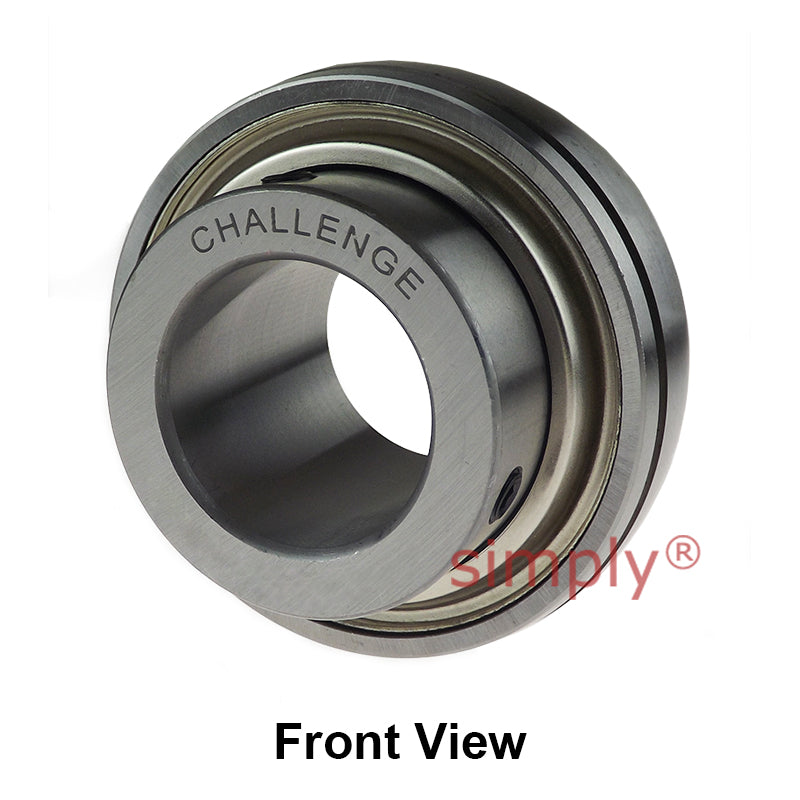

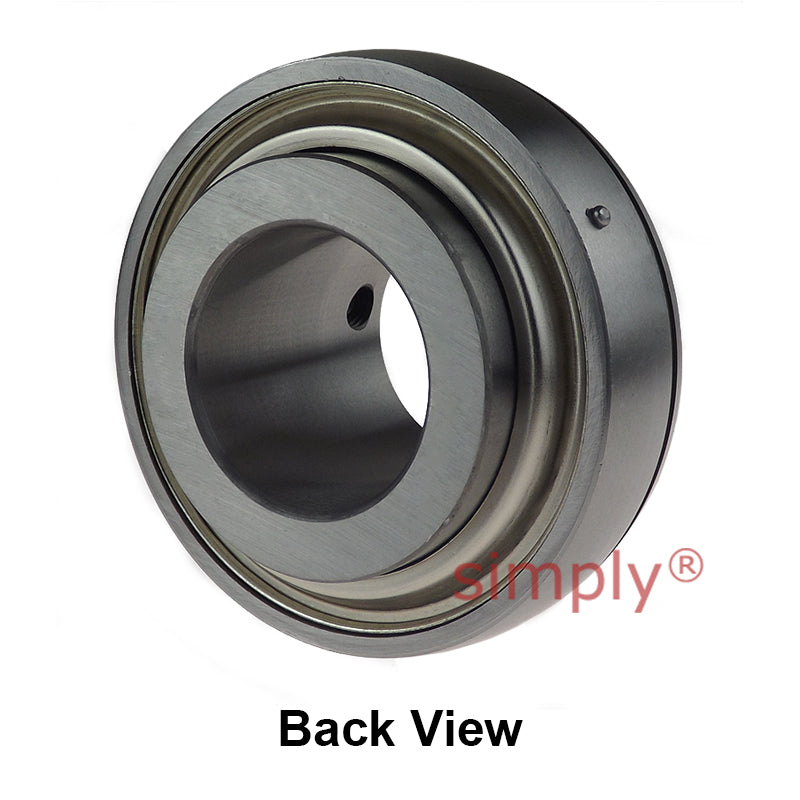

Challenge UCX07 Metric Insert with Grub Screws with 35mm Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $47.72 ex VAT
- Sale price
- $47.72
- Regular price
-
In stock
Quantity Price Breaks
10+
$42.47
19+
$40.08
29+
$39.61
39+
$39.13
49+
$38.65
74+
$38.18
99+
$35.79
199+
$35.31
249+
$34.84
499+
$34.36
999+
$33.40
SKU:
UCX.07.TS.CHAL
Challenge UCX07 Metric Insert with Grub Screws with 35mm Bore 80mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $47.72 ex VAT
- Sale price
- $47.72
- Regular price
-
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 35mm |
| Outside Diameter D | = | 80mm |
| Overall Width Bi | = | 49.2mm |
| Inner Race Width Be | = | 22mm |
| Back of Bearing to Centre Line n | = | 19mm |
| Front of Bearing to Centre Line m | = | 30.2mm |
| Dimension G | = | 8mm |
| Grub Screws x 2 | = | M8x1.0mm |
| Load Rating (Dynamic) | = | 2560kg |
| Load Rating (Static) | = | 1810kg |
| Max Speed | = | 2400 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
