SKU: UCTX15-48

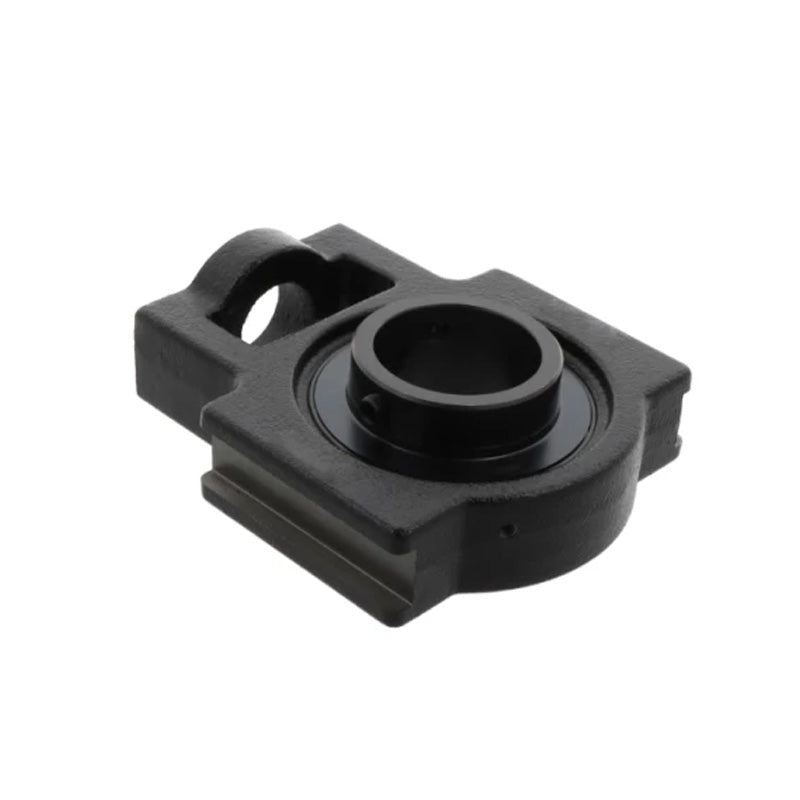

UCTX15-48 Imperial Cast Iron Take Up Unit Housing with 3 inch Bore Insert
- Regular price
- $144.14 ex VAT
- Sale price
- $144.14
- Regular price
-
In stock
Quantity Price Breaks
10+
$128.28
19+
$121.08
29+
$119.64
39+
$118.19
49+
$116.75
74+
$115.31
99+
$108.11
199+
$106.66
249+
$105.22
499+
$103.78
999+
$100.90
SKU:
UCTX15-48
UCTX15-48 Imperial Cast Iron Take Up Unit Housing with 3 inch Bore Insert
- Regular price
- $144.14 ex VAT
- Sale price
- $144.14
- Regular price
-
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 3 inch |
| o | = | 1-17/64 inch |
| g | = | 29/32 inch |
| p | = | 4-3/8 inch |
| q | = | 2-3/4 inch |
| s | = | 1-39/64 inch |
| b | = | 4-49/64 inch |
| k | = | 1.102 inch |
| e | = | 6-1/2 inch |
| a | = | 7-1/4 inch |
| w | = | 9-1/4 inch |
| j | = | 1-57/64 inch |
| l | = | 2-3/4 inch |
| h | = | 5-33/64 inch |
| B | = | 3.252 inch |
| n | = | 1.311 inch |
| Bearing no | = | UCX15-48 |
| Housing no | = | TX15 |
| Weight | = | 8 kg |
