SKU: UCTX15

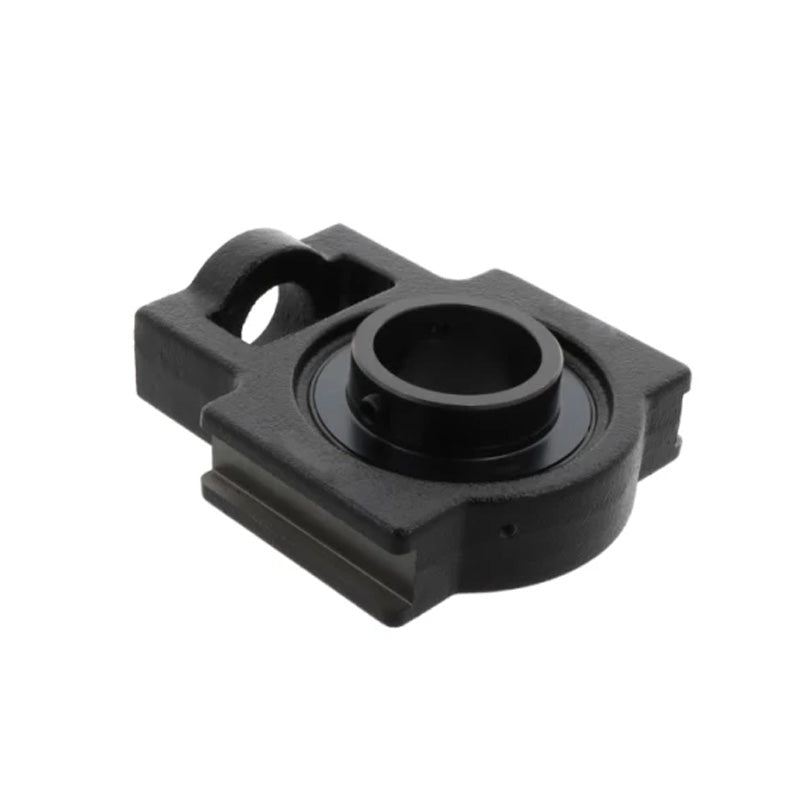

UCTX15 Metric Cast Iron Take Up Unit Housing with 75mm Bore Insert
- Regular price
- $142.22 ex VAT
- Sale price
- $142.22
- Regular price
-
In stock
Quantity Price Breaks
10+
$126.58
19+
$119.46
29+
$118.04
39+
$116.62
49+
$115.20
74+
$113.78
99+
$106.67
199+
$105.24
249+
$103.82
499+
$102.40
999+
$99.55
SKU:
UCTX15
UCTX15 Metric Cast Iron Take Up Unit Housing with 75mm Bore Insert
- Regular price
- $142.22 ex VAT
- Sale price
- $142.22
- Regular price
-
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 75mm |
| o | = | 32mm |
| g | = | 23mm |
| p | = | 111mm |
| q | = | 70mm |
| s | = | 41mm |
| b | = | 121mm |
| k | = | 28mm |
| e | = | 165mm |
| a | = | 184mm |
| w | = | 235mm |
| j | = | 48mm |
| l | = | 70mm |
| h | = | 140mm |
| B | = | 82.6mm |
| n | = | 33.3mm |
| Bearing no | = | UCX15 |
| Housing no | = | TX15 |
| Weight | = | 8 kg |
