SKU: UCTX14-44
UCTX14-44 Imperial Cast Iron Take Up Unit Housing with 2-3/4 inch Bore Insert
- Regular price
- $134.36 ex VAT
- Sale price
- $134.36
- Regular price
-
In stock
Quantity Price Breaks
10+
$119.58
19+
$112.86
29+
$111.52
39+
$110.18
49+
$108.83
74+
$107.49
99+
$100.77
199+
$99.43
249+
$98.08
499+
$96.74
999+
$94.05
SKU:
UCTX14-44
UCTX14-44 Imperial Cast Iron Take Up Unit Housing with 2-3/4 inch Bore Insert
- Regular price
- $134.36 ex VAT
- Sale price
- $134.36
- Regular price
-
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

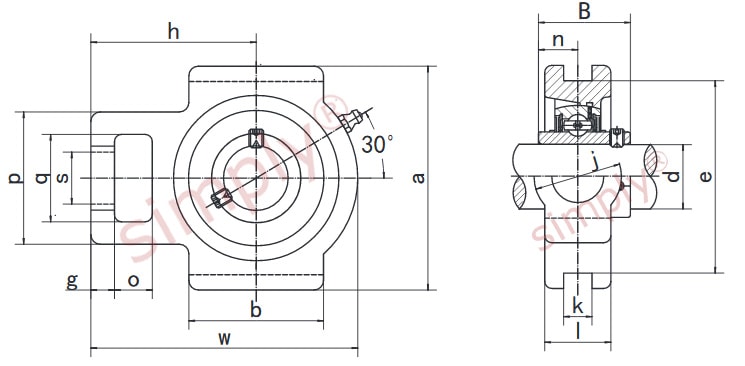

Technical
| d | = | 2-3/4 inch |
| o | = | 1-17/64 inch |
| g | = | 29/32 inch |
| p | = | 4-3/8 inch |
| q | = | 2-3/4 inch |
| s | = | 1-39/64 inch |
| b | = | 4-49/64 inch |
| k | = | 1.024 inch |
| e | = | 5-15/16 inch |
| a | = | 6-37/64 inch |
| w | = | 9-9/64 inch |
| j | = | 1-57/64 inch |
| l | = | 2-3/4 inch |
| h | = | 5-33/64 inch |
| B | = | 3.063 inch |
| n | = | 1.311 inch |
| Bearing no | = | UCX14-44 |
| Housing no | = | TX14 |
| Weight | = | 7.3 kg |
