SKU: UCTX14

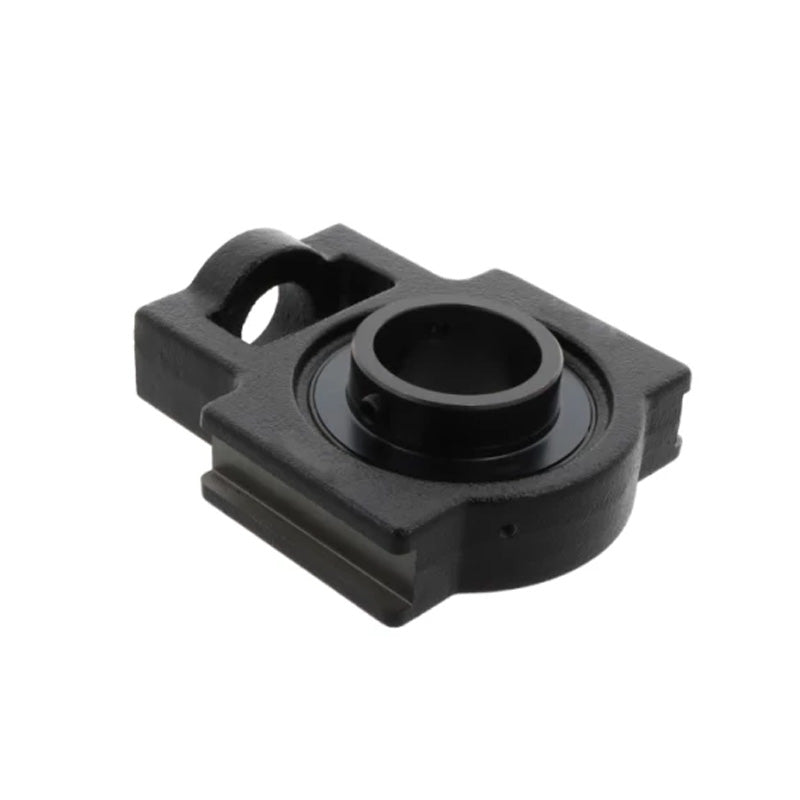

UCTX14 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
- Regular price
- $112.51 ex VAT
- Sale price
- $112.51
- Regular price
-
In stock
Quantity Price Breaks
10+
$100.13
19+
$94.51
29+
$93.38
39+
$92.26
49+
$91.13
74+
$90.01
99+
$84.38
199+
$83.26
249+
$82.13
499+
$81.01
999+
$78.76
SKU:
UCTX14
UCTX14 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
- Regular price
- $112.51 ex VAT
- Sale price
- $112.51
- Regular price
-
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 70mm |
| o | = | 32mm |
| g | = | 23mm |
| p | = | 111mm |
| q | = | 70mm |
| s | = | 41mm |
| b | = | 121mm |
| k | = | 26mm |
| e | = | 151mm |
| a | = | 167mm |
| w | = | 232mm |
| j | = | 48mm |
| l | = | 70mm |
| h | = | 140mm |
| B | = | 77.8mm |
| n | = | 33.3mm |
| Bearing no | = | UCX14 |
| Housing no | = | TX14 |
| Weight | = | 7.3 kg |
