SKU: UCTX10-30

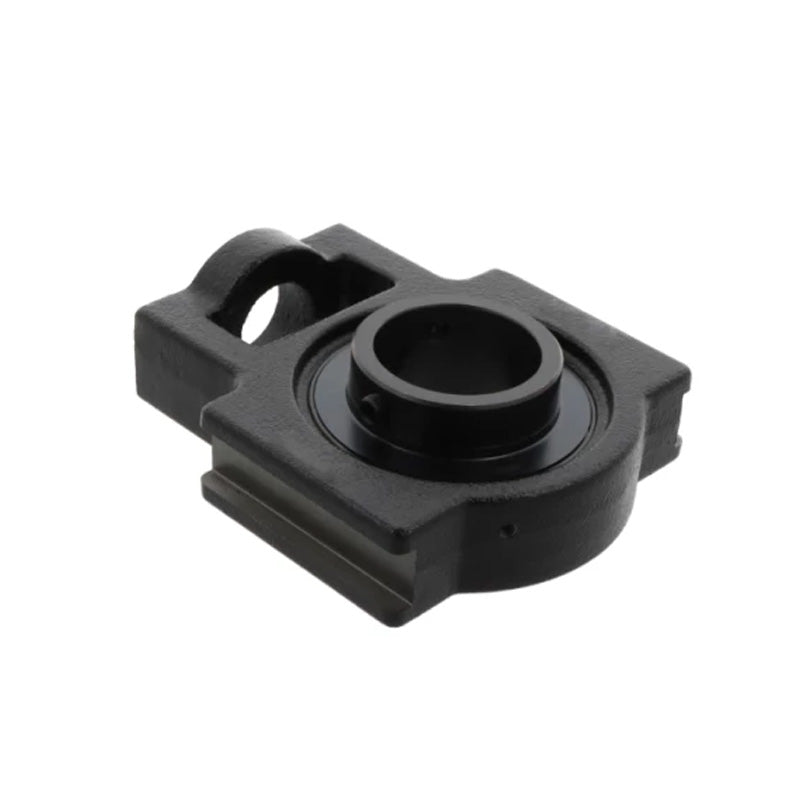

UCTX10-30 Imperial Cast Iron Take Up Unit Housing with 1-7/8 inch Bore Insert
- Regular price
- $64.30 ex VAT
- Sale price
- $64.30
- Regular price
-
In stock
Quantity Price Breaks
10+
$57.23
19+
$54.01
29+
$53.37
39+
$52.73
49+
$52.08
74+
$51.44
99+
$48.23
199+
$47.58
249+
$46.94
499+
$46.30
999+
$45.01
SKU:
UCTX10-30
UCTX10-30 Imperial Cast Iron Take Up Unit Housing with 1-7/8 inch Bore Insert
- Regular price
- $64.30 ex VAT
- Sale price
- $64.30
- Regular price
-
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-7/8 inch |
| o | = | 63/64 inch |
| g | = | 13/16 inch |
| p | = | 4-1/64 inch |
| q | = | 2-33/64 inch |
| s | = | 1-3/8 inch |
| b | = | 3-3/4 inch |
| k | = | 0.866 inch |
| e | = | 5-1/8 inch |
| a | = | 5-3/4 inch |
| w | = | 6-47/64 inch |
| j | = | 1-21/32 inch |
| l | = | 2-33/64 inch |
| h | = | 4-11/64 inch |
| B | = | 2.189 inch |
| n | = | 0.874 inch |
| Bearing no | = | UCX10-30 |
| Housing no | = | TX10 |
| Weight | = | 4.2 kg |
