SKU: UCT318-SNR
SNR UCT318 Metric Cast Iron Take Up Unit with 90mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- $405.53 ex VAT
- Sale price
- $405.53
- Regular price
-
In stock
Quantity Price Breaks
10+
$360.92
19+
$340.65
29+
$336.59
39+
$332.53
49+
$328.48
74+
$324.42
99+
$304.15
199+
$300.09
249+
$296.04
499+
$291.98
999+
$283.87
SKU:
UCT318-SNR
SNR UCT318 Metric Cast Iron Take Up Unit with 90mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- $405.53 ex VAT
- Sale price
- $405.53
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

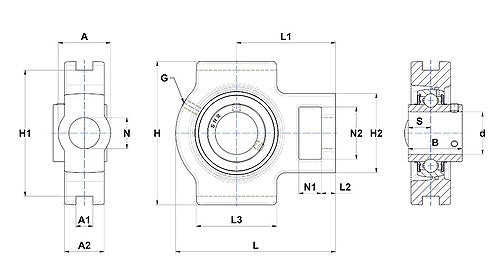

| --- | = | Dimensions |
| Shaft diameter d | = | 90mm |
| A | = | 110mm |
| A1 | = | 32mm |
| A2 | = | 66mm |
| B | = | 96mm |
| H | = | 255mm |
| H1 | = | 228mm |
| H2 | = | 160mm |
| L | = | 312mm |
| L1 | = | 192mm |
| L2 | = | 32mm |
| L3 | = | 175mm |
| N | = | 57mm |
| N1 | = | 46mm |
| N2 | = | 106mm |
| S | = | 40mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 143 kN |
| Static load C0 | = | 108 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 21.47 kg |
