SKU: UCT316D1-NTN

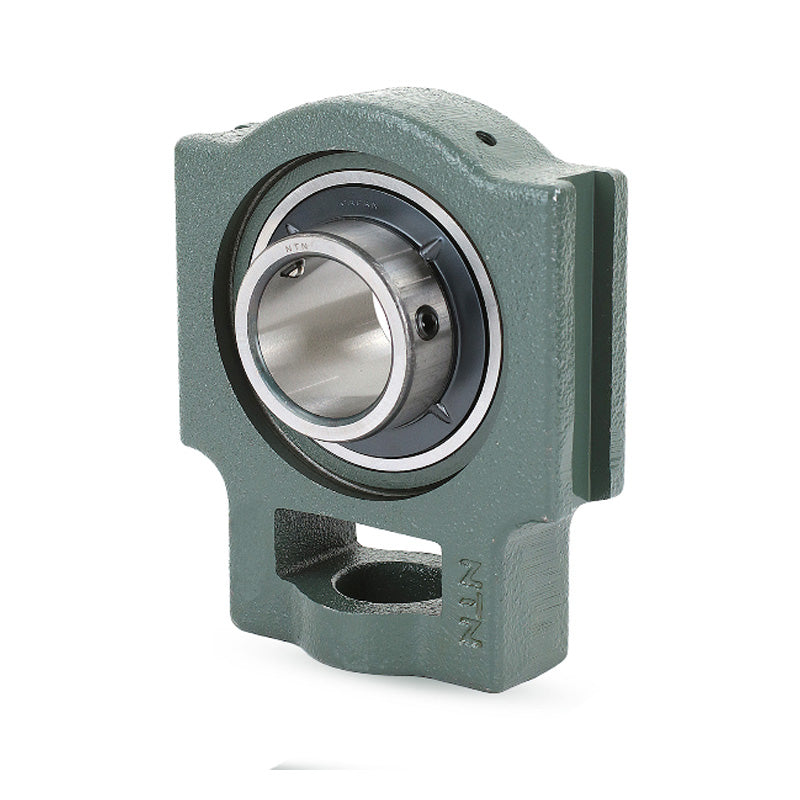

NTN UCT316D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- $320.79 ex VAT
- Sale price
- $320.79
- Regular price
-
In stock
Quantity Price Breaks
10+
$285.50
19+
$269.46
29+
$266.26
39+
$263.05
49+
$259.84
74+
$256.63
99+
$240.59
199+
$237.38
249+
$234.18
499+
$230.97
999+
$224.55
SKU:
UCT316D1-NTN
NTN UCT316D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- $320.79 ex VAT
- Sale price
- $320.79
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

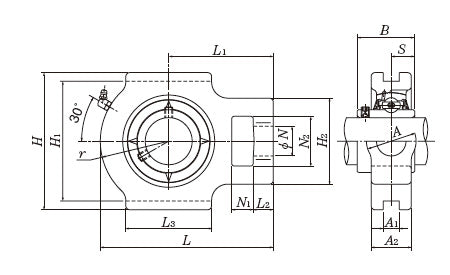

| --- | = | Dimensions |
| Shaft diameter | = | 80mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 42mm | |
| L< | = | sub> |
| 2< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 150mm | |
| N< | = | sub> |
| 2< | = | /sub> |
| = | 98mm | |
| N | = | 53mm |
| L< | = | sub> |
| 3< | = | /sub> |
| = | 160mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 204mm | |
| H | = | 230mm |
| L | = | 282mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 60mm | |
| A | = | 102mm |
| r | = | 108mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 174mm | |
| B | = | 86mm |
| S | = | 34mm |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 136 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 86.5 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 6.05 kN | |
| --- | = | Unit information |
| Mass | = | 16 kg |
