SKU: UCT311-32
UCT311-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Insert
- Regular price
- $80.15 ex VAT
- Sale price
- $80.15
- Regular price
-
In stock
Quantity Price Breaks
10+
$71.33
19+
$67.33
29+
$66.52
39+
$65.72
49+
$64.92
74+
$64.12
99+
$60.11
199+
$59.31
249+
$58.51
499+
$57.71
999+
$56.11
SKU:
UCT311-32
UCT311-32 Imperial Cast Iron Take Up Unit Housing with 2 inch Bore Insert
- Regular price
- $80.15 ex VAT
- Sale price
- $80.15
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

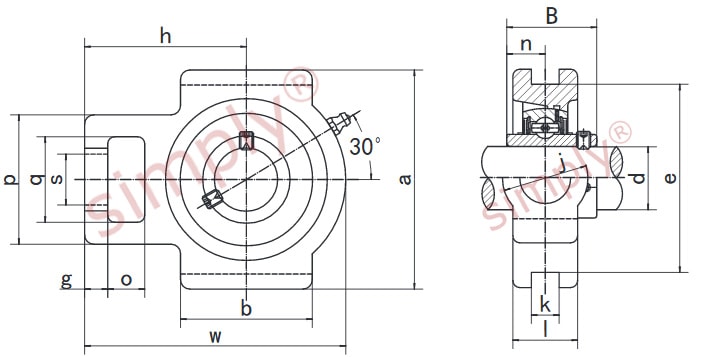

Technical
| d | = | 2 inch |
| o | = | 1-5/32 inch |
| g | = | 29/32 inch |
| p | = | 4-1/8 inch |
| q | = | 2-19/32 inch |
| s | = | 1-17/32 inch |
| b | = | 4-17/32 inch |
| k | = | 0.866 inch |
| e | = | 5-29/32 inch |
| a | = | 6-13/32 inch |
| w | = | 8-5/32 inch |
| j | = | 2-19/32 inch |
| l | = | 1-23/32 inch |
| h | = | 5 inch |
| B | = | 2.5984 inch |
| n | = | 0.984 inch |
| Bearing no | = | UC311-32 |
| Housing no | = | T311 |
| Weight | = | 6.2 kg |
