SKU: UCT217D1-NTN

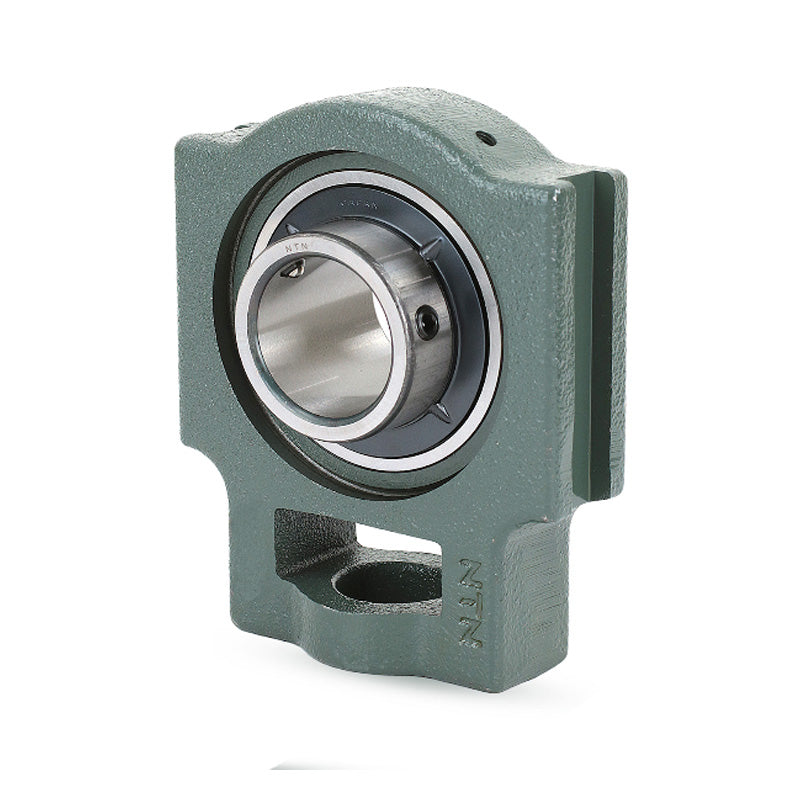

NTN UCT217D1 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- $249.75 ex VAT
- Sale price
- $249.75
- Regular price
-
In stock
Quantity Price Breaks
10+
$222.28
19+
$209.79
29+
$207.29
39+
$204.80
49+
$202.30
74+
$199.80
99+
$187.31
199+
$184.82
249+
$182.32
499+
$179.82
999+
$174.83
SKU:
UCT217D1-NTN
NTN UCT217D1 Metric Cast Iron Take Up Unit with 85mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- $249.75 ex VAT
- Sale price
- $249.75
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 85mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 38mm | |
| L< | = | sub> |
| 2< | = | /sub> |
| = | 31mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 124mm | |
| N< | = | sub> |
| 2< | = | /sub> |
| = | 73mm | |
| N | = | 48mm |
| L< | = | sub> |
| 3< | = | /sub> |
| = | 157mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 173mm | |
| H | = | 198mm |
| L | = | 260mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 54mm | |
| A | = | 73mm |
| r | = | 98mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 162mm | |
| B | = | 85.7mm |
| S | = | 34.1mm |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 92 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 64 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 4.6 kN | |
| --- | = | Unit information |
| Mass | = | 11 kg |
