SKU: UCT212CC-SNR

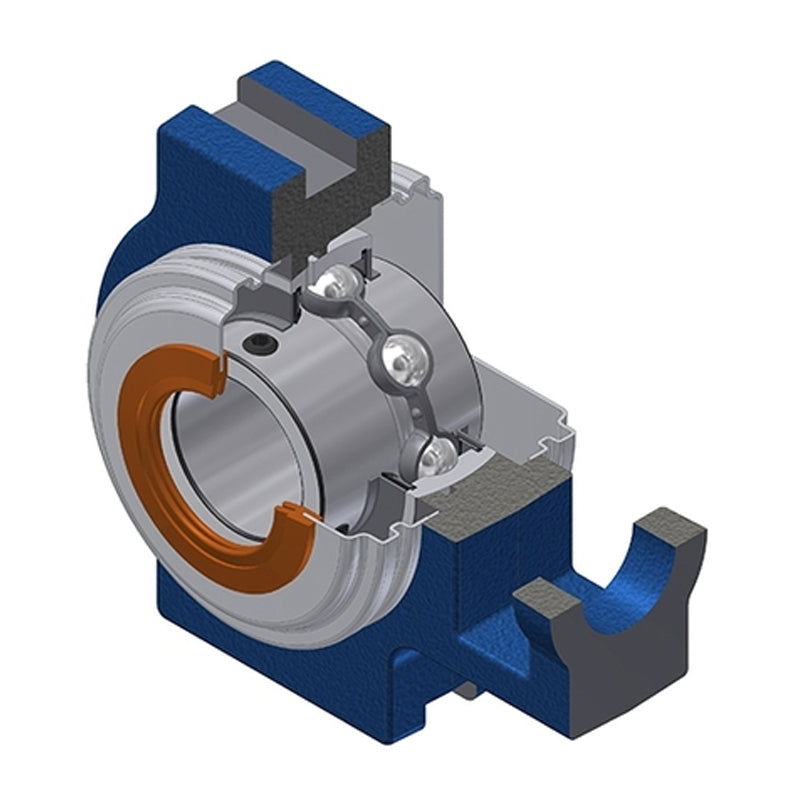

SNR UCT212CC Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- $116.77 ex VAT
- Sale price
- $116.77
- Regular price
-
In stock
Quantity Price Breaks
10+
$103.93
19+
$98.09
29+
$96.92
39+
$95.75
49+
$94.58
74+
$93.42
99+
$87.58
199+
$86.41
249+
$85.24
499+
$84.07
999+
$81.74
SKU:
UCT212CC-SNR
SNR UCT212CC Metric Cast Iron Take Up Unit with 60mm Bore Bearing Unit with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
- Regular price
- $116.77 ex VAT
- Sale price
- $116.77
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

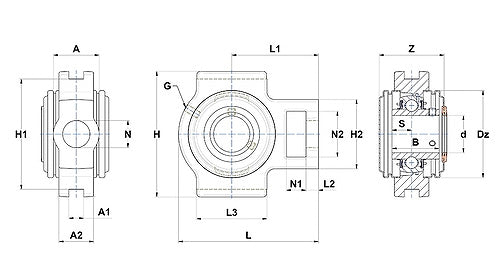

| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 64mm |
| A1 | = | 22mm |
| A2 | = | 42mm |
| B | = | 65.1mm |
| H | = | 146mm |
| H1 | = | 130mm |
| H2 | = | 102mm |
| L | = | 194mm |
| L1 | = | 119mm |
| L2 | = | 19mm |
| L3 | = | 102mm |
| N | = | 35mm |
| N1 | = | 32mm |
| N2 | = | 64mm |
| S | = | 25.4mm |
| Dz | = | 120mm |
| Z | = | 90mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 4.96 kg |
