SKU: UCT210N-SNR
SNR UCT210N Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- $73.73 ex VAT
- Sale price
- $73.73
- Regular price
-
In stock
Quantity Price Breaks
10+
$65.62
19+
$61.93
29+
$61.20
39+
$60.46
49+
$59.72
74+
$58.98
99+
$55.30
199+
$54.56
249+
$53.82
499+
$53.09
999+
$51.61
SKU:
UCT210N-SNR
SNR UCT210N Metric Cast Iron Take Up Unit with 50mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- $73.73 ex VAT
- Sale price
- $73.73
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

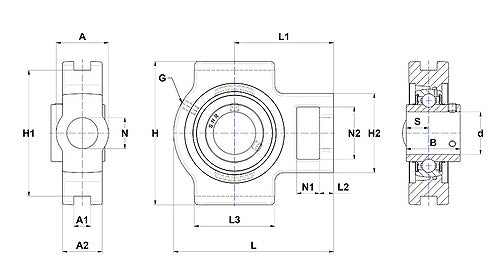

| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 49mm |
| A1 | = | 16mm |
| A2 | = | 37mm |
| B | = | 51.6mm |
| H | = | 117mm |
| H1 | = | 102mm |
| H2 | = | 83mm |
| L | = | 149mm |
| L1 | = | 90mm |
| L2 | = | 16mm |
| L3 | = | 86mm |
| N | = | 29mm |
| N1 | = | 19mm |
| N2 | = | 49mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 2.4 kg |
