SKU: UCPX20D1-NTN

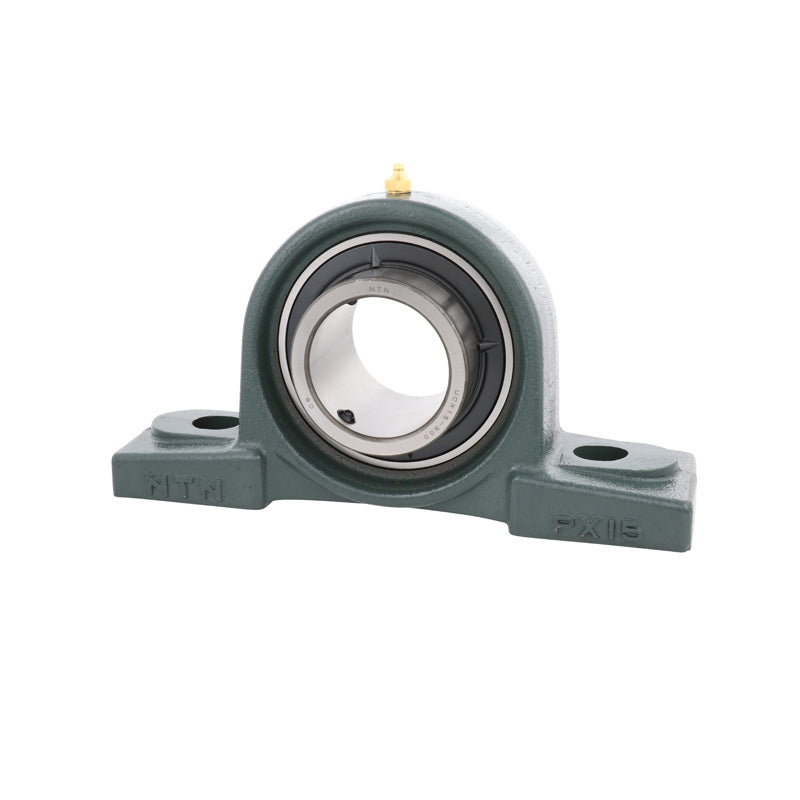

NTN UCPX20D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 100mm Bore Insert - Allow 2-3 Days
- Regular price
- $413.37 ex VAT
- Sale price
- $413.37
- Regular price
-
In stock
Quantity Price Breaks
10+
$367.90
19+
$347.23
29+
$343.10
39+
$338.96
49+
$334.83
74+
$330.70
99+
$310.03
199+
$305.89
249+
$301.76
499+
$297.63
999+
$289.36
SKU:
UCPX20D1-NTN
NTN UCPX20D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 100mm Bore Insert - Allow 2-3 Days
- Regular price
- $413.37 ex VAT
- Sale price
- $413.37
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 100mm |
| H | = | 127mm |
| L | = | 432mm |
| J | = | 337mm |
| A | = | 121mm |
| N | = | 33mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 36mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 45mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 244mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 125mm | |
| B | = | 117.5mm |
| S | = | 49.2mm |
| Fixing bolt | = | M27 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 147 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 105 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 6.75 kN | |
| --- | = | Unit information |
| Mass | = | 25 kg |
