SKU: UCPX16D1-NTN

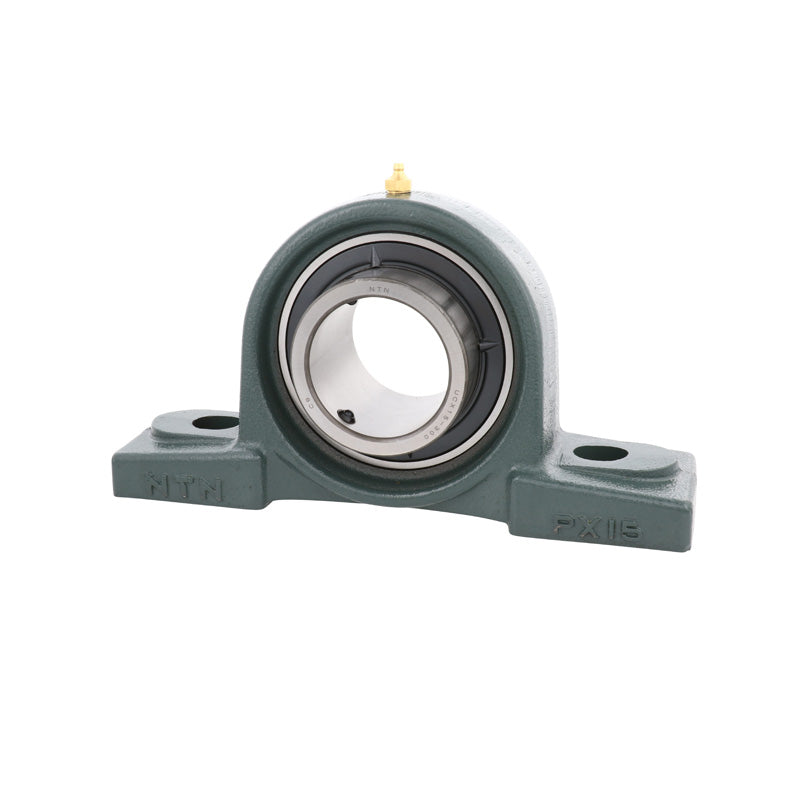

NTN UCPX16D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
- Regular price
- $195.99 ex VAT
- Sale price
- $195.99
- Regular price
-
In stock
Quantity Price Breaks
10+
$174.43
19+
$164.63
29+
$162.67
39+
$160.71
49+
$158.75
74+
$156.79
99+
$146.99
199+
$145.03
249+
$143.07
499+
$141.11
999+
$137.19
SKU:
UCPX16D1-NTN
NTN UCPX16D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
- Regular price
- $195.99 ex VAT
- Sale price
- $195.99
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 80mm |
| H | = | 101.6mm |
| L | = | 381mm |
| J | = | 283mm |
| A | = | 102mm |
| N | = | 27mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 40mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 194mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 110mm | |
| B | = | 85.7mm |
| S | = | 34.1mm |
| Fixing bolt | = | M22 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 92 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 64 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 4.6 kN | |
| --- | = | Unit information |
| Mass | = | 14 kg |
