SKU: UCPX15-215D1-NTN

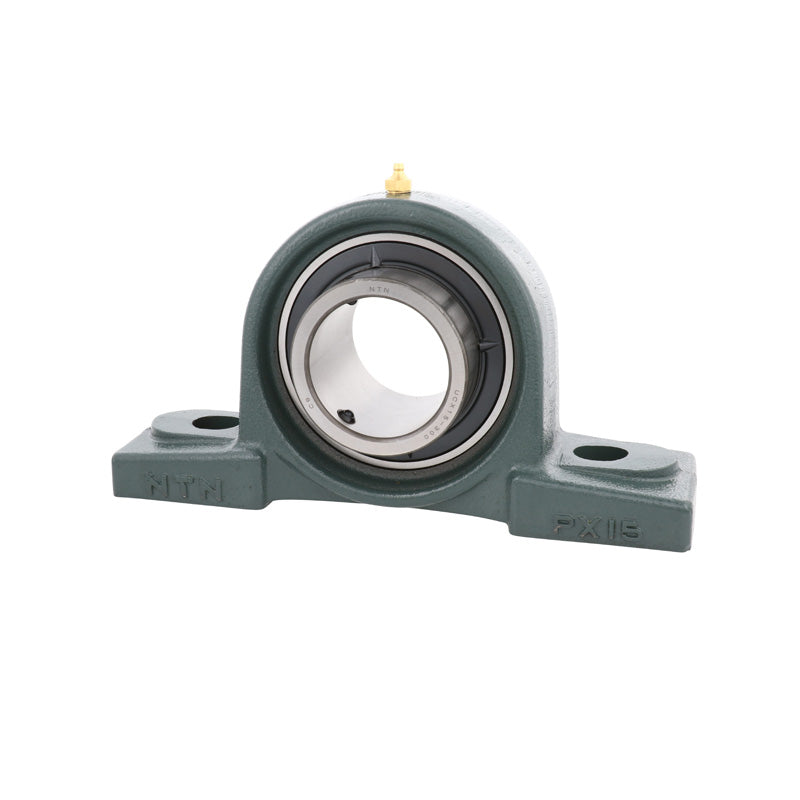

NTN UCPX15-215D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $180.42 ex VAT
- Sale price
- $180.42
- Regular price
-
In stock
Quantity Price Breaks
10+
$160.57
19+
$151.55
29+
$149.75
39+
$147.94
49+
$146.14
74+
$144.34
99+
$135.32
199+
$133.51
249+
$131.71
499+
$129.90
999+
$126.29
SKU:
UCPX15-215D1-NTN
NTN UCPX15-215D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-15/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $180.42 ex VAT
- Sale price
- $180.42
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 2-15/16 inch |
| H | = | 3-1/2 inch |
| L | = | 13 inch |
| J | = | 9-1/32 inch |
| A | = | 3-1/2 inch |
| N | = | 1-1/16 inch |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 1-3/16 inch | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 1-3/8 inch | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 6-7/8 inch | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 3-3/4 inch | |
| B | = | 3.252 inch |
| S | = | 1.311 inch |
| Fixing bolt | = | 7/8 inch |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 80.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 53 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.95 kN | |
| --- | = | Unit information |
| Mass | = | 22 lbs |
