SKU: UCPX13D1-NTN

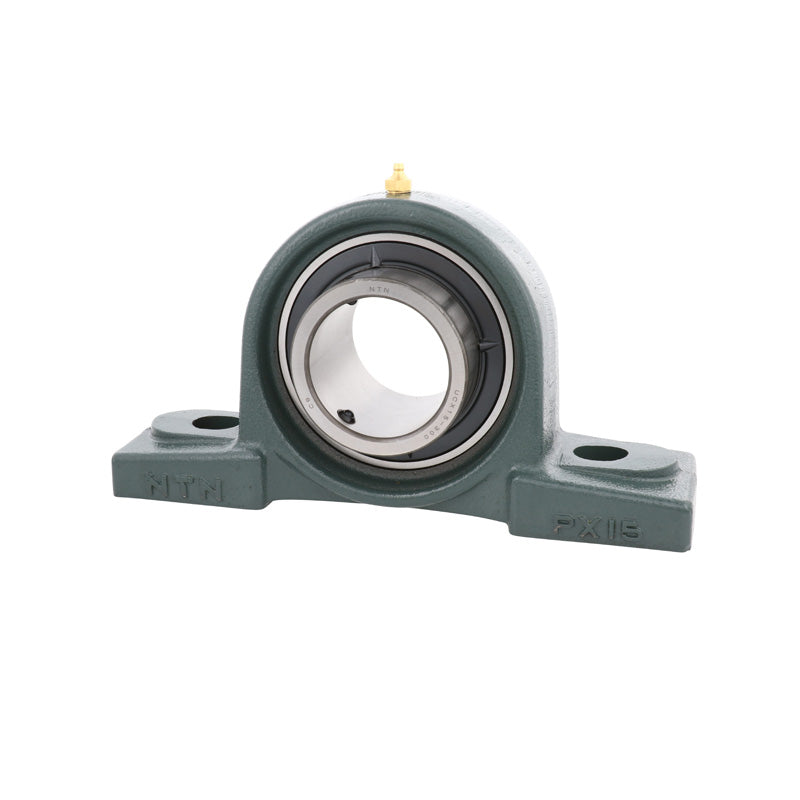

NTN UCPX13D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
- Regular price
- $142.54 ex VAT
- Sale price
- $142.54
- Regular price
-
In stock
Quantity Price Breaks
10+
$126.86
19+
$119.73
29+
$118.31
39+
$116.88
49+
$115.46
74+
$114.03
99+
$106.91
199+
$105.48
249+
$104.05
499+
$102.63
999+
$99.78
SKU:
UCPX13D1-NTN
NTN UCPX13D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
- Regular price
- $142.54 ex VAT
- Sale price
- $142.54
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 65mm |
| H | = | 76.2mm |
| L | = | 286mm |
| J | = | 203mm |
| A | = | 83mm |
| N | = | 25mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 28mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 33mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 154mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 80mm | |
| B | = | 74.6mm |
| S | = | 30.2mm |
| Fixing bolt | = | M20 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 69 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 44 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.45 kN | |
| --- | = | Unit information |
| Mass | = | 7.1 kg |
