SKU: UCPX13-208D1-NTN

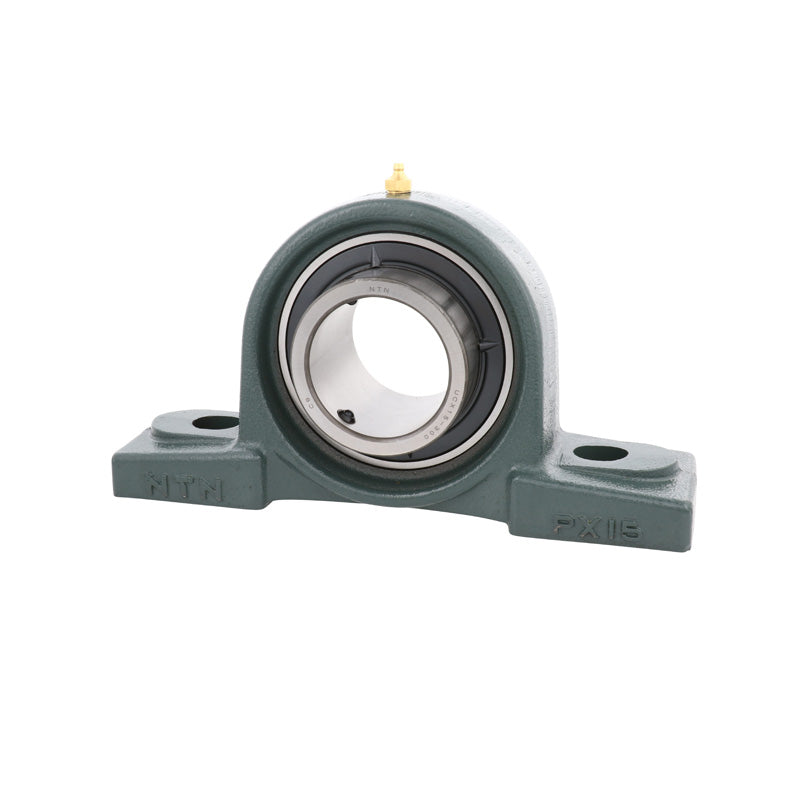

NTN UCPX13-208D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
- Regular price
- $158.14 ex VAT
- Sale price
- $158.14
- Regular price
-
In stock
Quantity Price Breaks
10+
$140.74
19+
$132.84
29+
$131.26
39+
$129.67
49+
$128.09
74+
$126.51
99+
$118.61
199+
$117.02
249+
$115.44
499+
$113.86
999+
$110.70
SKU:
UCPX13-208D1-NTN
NTN UCPX13-208D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/2 inch Bore Insert - Allow 2-3 Days
- Regular price
- $158.14 ex VAT
- Sale price
- $158.14
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 2-1/2 inch |
| H | = | 3 inch |
| L | = | 11-1/4 inch |
| J | = | 8 inch |
| A | = | 3-9/32 inch |
| N | = | 31/32 inch |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 1-3/32 inch | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 1-5/16 inch | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 6-1/16 inch | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 3-5/32 inch | |
| B | = | 2.937 inch |
| S | = | 1.189 inch |
| Fixing bolt | = | 3/4 inch |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 69 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 44 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.45 kN | |
| --- | = | Unit information |
| Mass | = | 16 lbs |
