SKU: UCPX12D1-NTN

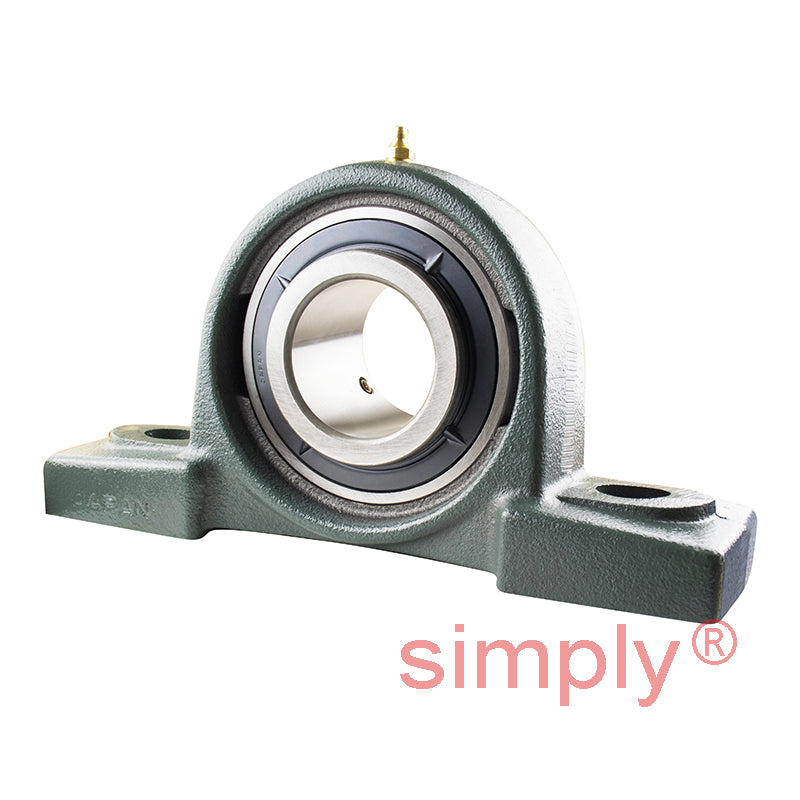

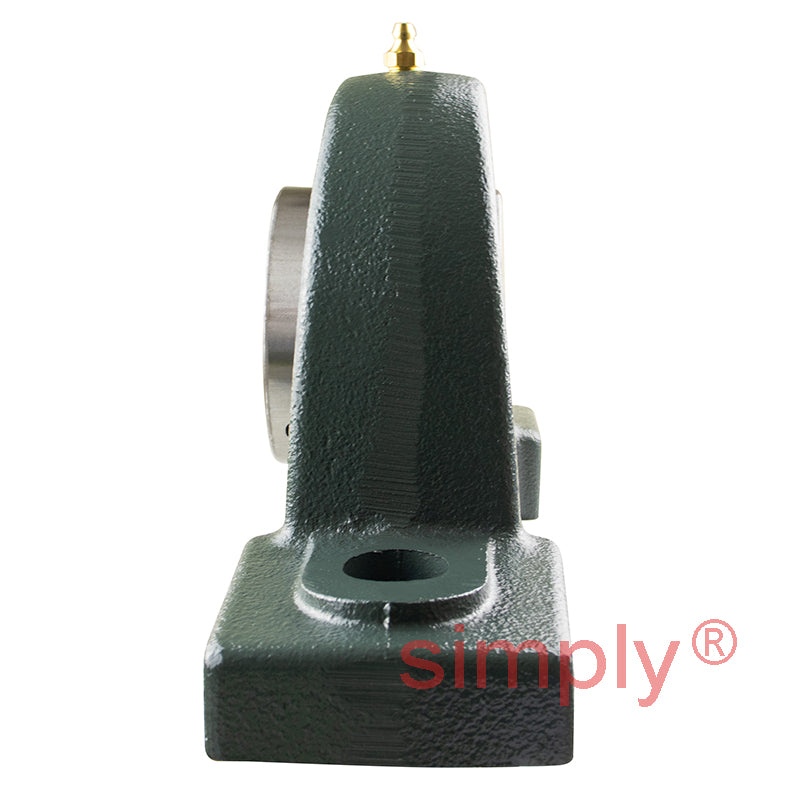

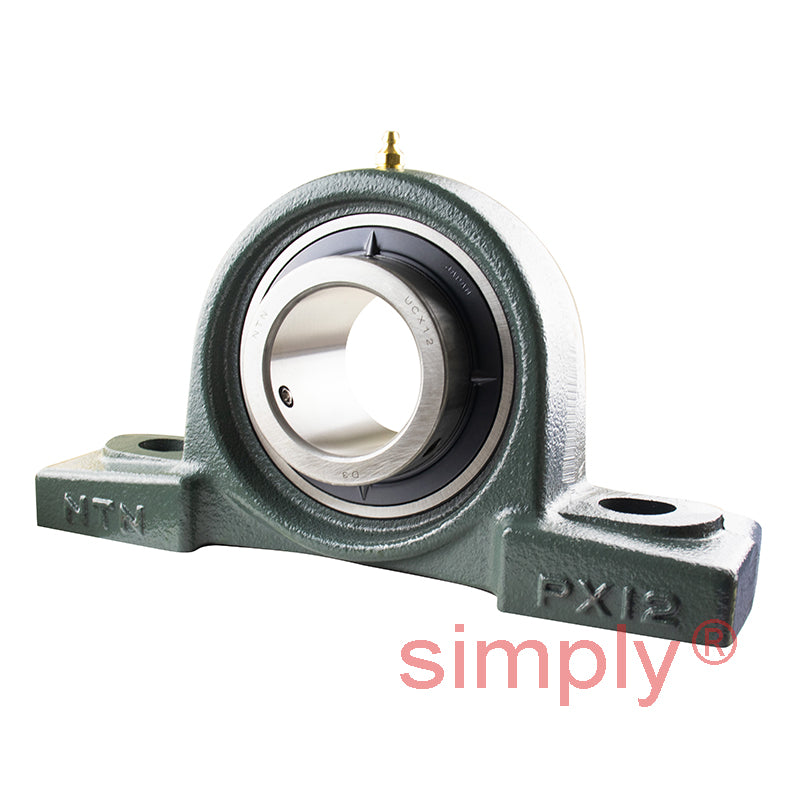

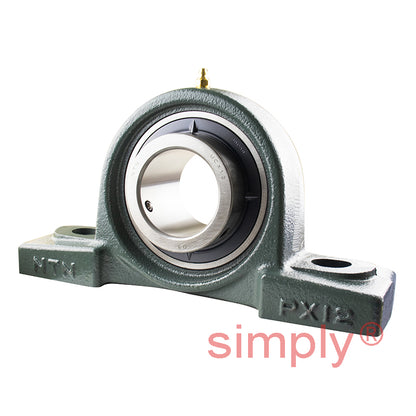

NTN UCPX12D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert
- Regular price
- $184.34 ex VAT
- Sale price
- $184.34
- Regular price
-
In stock
Quantity Price Breaks
10+
$164.06
19+
$154.85
29+
$153.00
39+
$151.16
49+
$149.32
74+
$147.47
99+
$138.26
199+
$136.41
249+
$134.57
499+
$132.72
999+
$129.04
SKU:
UCPX12D1-NTN
NTN UCPX12D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert
- Regular price
- $184.34 ex VAT
- Sale price
- $184.34
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| H | = | 76.2mm |
| L | = | 286mm |
| J | = | 203mm |
| A | = | 83mm |
| N | = | 25mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 28mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 33mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 151mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 80mm | |
| B | = | 65.1mm |
| S | = | 25.4mm |
| Fixing bolt | = | M20 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 63.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 40 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.15 kN | |
| --- | = | Unit information |
| Mass | = | 6.8 kg |
