SKU: UCPX11D1-NTN

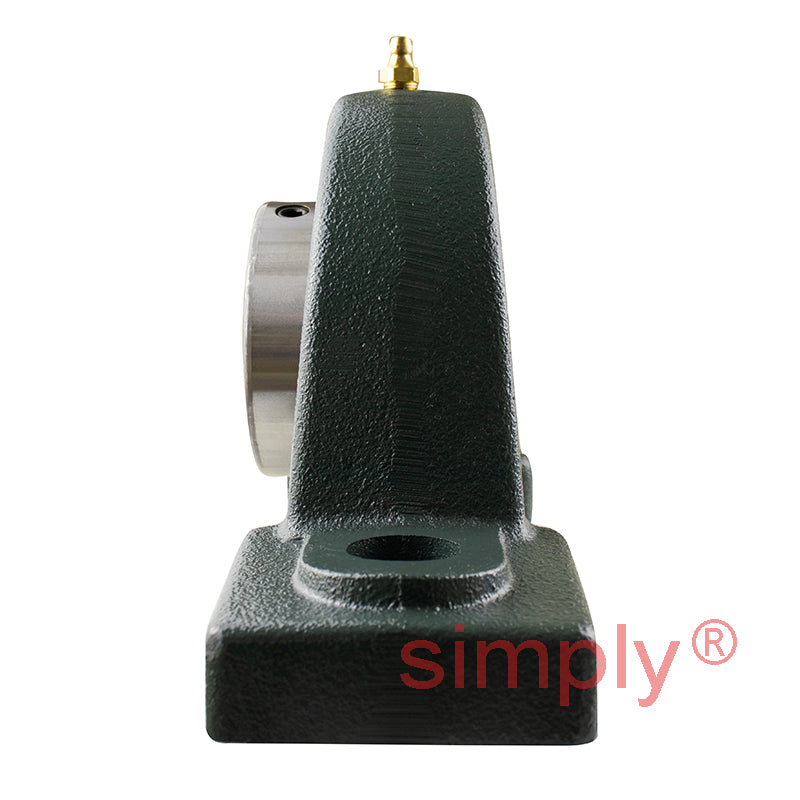

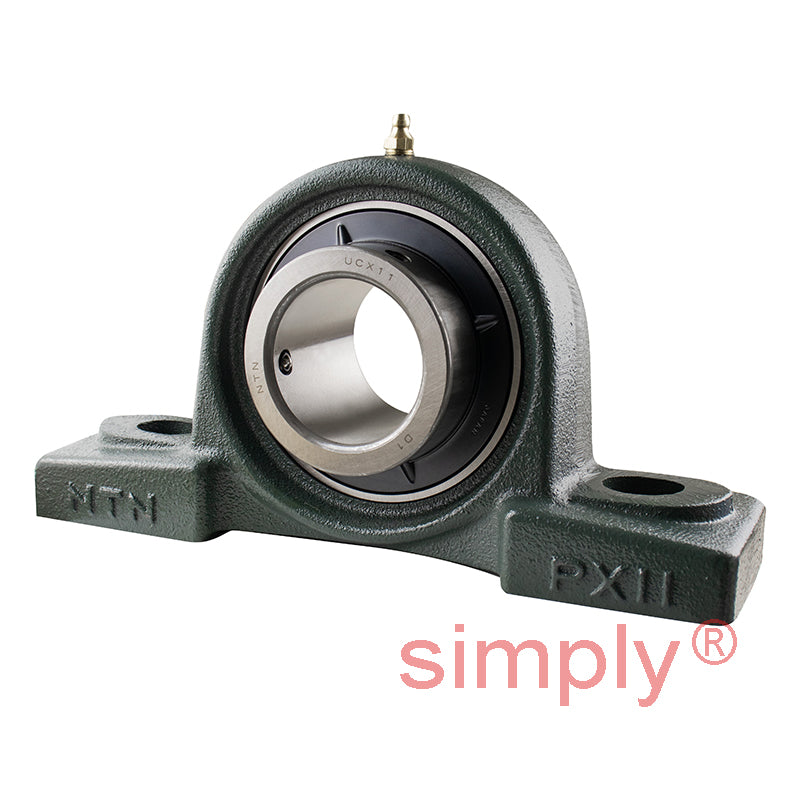

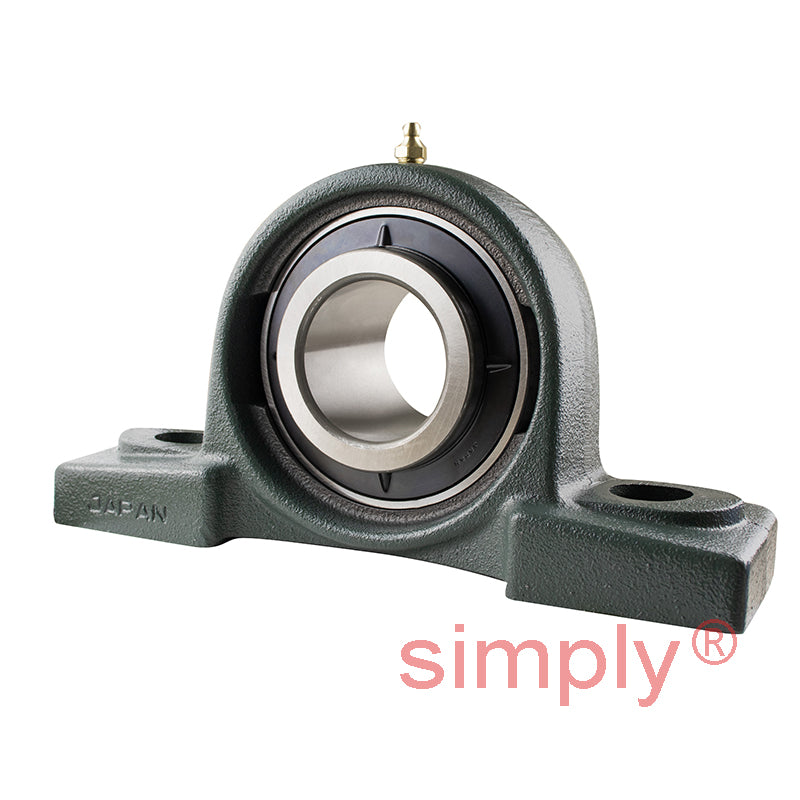

NTN UCPX11D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert
- Regular price
- $90.64 ex VAT
- Sale price
- $90.64
- Regular price
-
In stock
Quantity Price Breaks
10+
$80.67
19+
$76.14
29+
$75.23
39+
$74.32
49+
$73.42
74+
$72.51
99+
$67.98
199+
$67.07
249+
$66.17
499+
$65.26
999+
$63.45
SKU:
UCPX11D1-NTN
NTN UCPX11D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert
- Regular price
- $90.64 ex VAT
- Sale price
- $90.64
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 55mm |
| H | = | 69.8mm |
| L | = | 260mm |
| J | = | 184mm |
| A | = | 79mm |
| N | = | 25mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 28mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 137mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 75mm | |
| B | = | 65.1mm |
| S | = | 25.4mm |
| Fixing bolt | = | M20 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 58 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 36 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 2.83 kN | |
| --- | = | Unit information |
| Mass | = | 5.4 kg |
