SKU: UCPX10D1-NTN

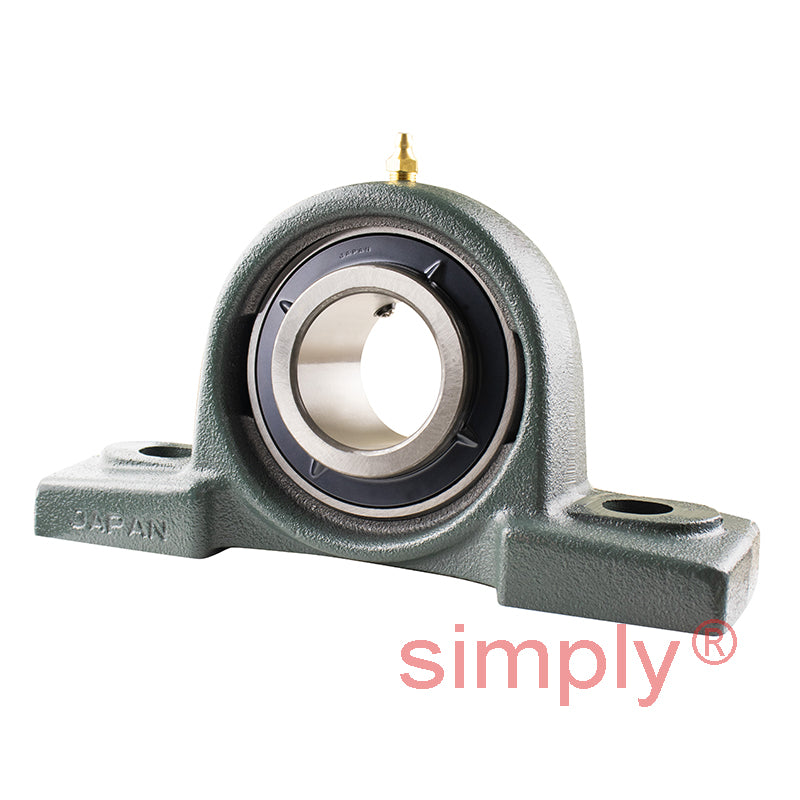

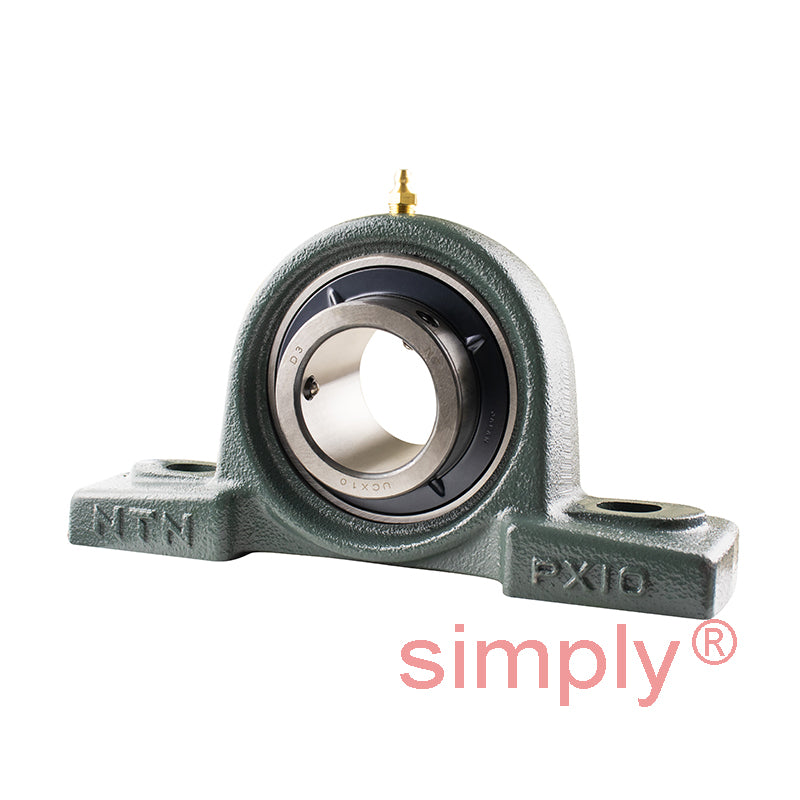

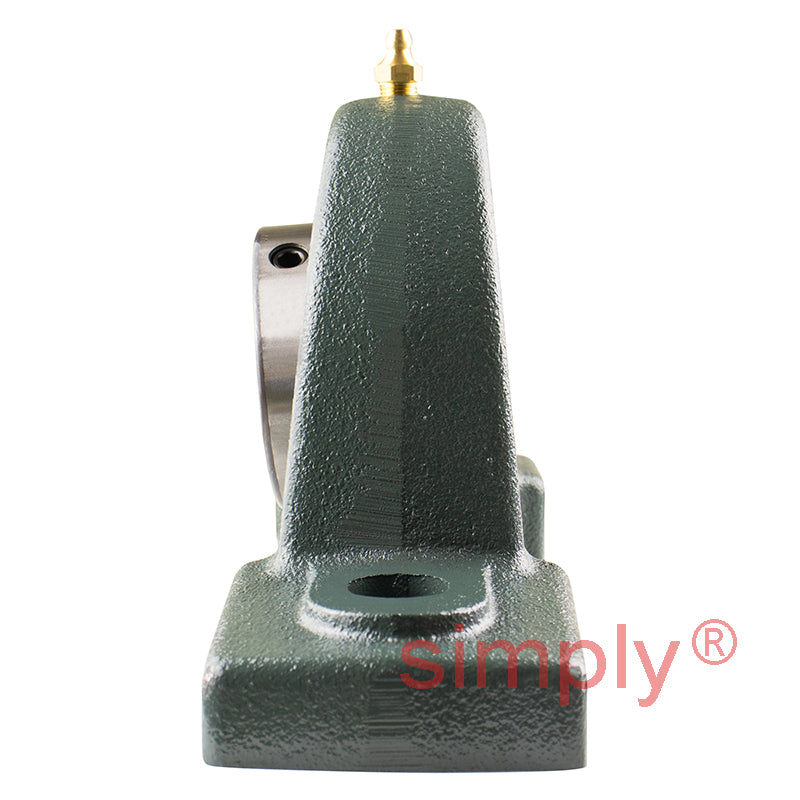

NTN UCPX10D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
- Regular price
- $73.51 ex VAT
- Sale price
- $73.51
- Regular price
-
In stock
Quantity Price Breaks
10+
$65.42
19+
$61.75
29+
$61.01
39+
$60.28
49+
$59.54
74+
$58.81
99+
$55.13
199+
$54.40
249+
$53.66
499+
$52.93
999+
$51.46
SKU:
UCPX10D1-NTN
NTN UCPX10D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert
- Regular price
- $73.51 ex VAT
- Sale price
- $73.51
- Regular price
-
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| H | = | 63.5mm |
| L | = | 241mm |
| J | = | 171mm |
| A | = | 73mm |
| N | = | 20mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 23mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 27mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 126mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 70mm | |
| B | = | 55.6mm |
| S | = | 22.2mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 48 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 29.2 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 2.29 kN | |
| --- | = | Unit information |
| Mass | = | 4.1 kg |
