SKU: UCPX.15-48.TS.CHAL

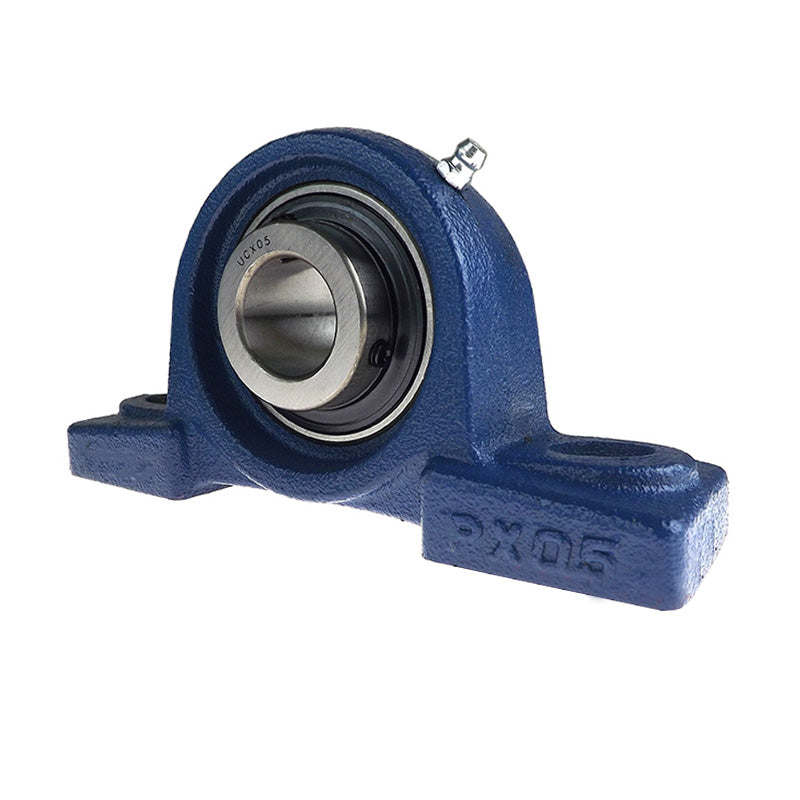

Challenge / FK UCPX15-48 Imperial Cast Iron Two Bolt Pillow Block Housing with 3 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $492.34 ex VAT
- Sale price
- $492.34
- Regular price
-
Quantity Price Breaks
Challenge / FK UCPX15-48 Imperial Cast Iron Two Bolt Pillow Block Housing with 3 inch Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- $492.34 ex VAT
- Sale price
- $492.34
- Regular price
-
Description
UCPX Cast Iron Two Bolt Pillow Block Housing: These medium-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| Shaft Diameter d | = | 3 inch |
| Casting Centre Line Height h | = | 88.9mm |
| Casting Length a | = | 330mm |
| Recommended Bolt Centres l | = | 229mm |
| Casting Width b | = | 89mm |
| Slot Length s< | = | sub> |
| 2< | = | /sub> |
| = | 50mm | |
| Slot Width s< | = | sub> |
| 1< | = | /sub> |
| = | 27mm | |
| Foot Height g | = | 35mm |
| Overall Height w | = | 175mm |
| Bearing Insert Width Bi | = | 82.6mm |
| Back of Bearing to Centre Line n | = | 33.3mm |
| Bolt Size | = | 7/8 inch |
| Grub Screws x 2 | = | 7/16 - 24UNF inch |
| Load Rating (Dynamic) | = | 5700kg |
| Load Rating (Static) | = | 4550kg |
| Max Speed | = | 1200 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
| Insert No | = | UCX15-48 |
| Housing No | = | PX15 |
