SKU: UCPLE206-SNR

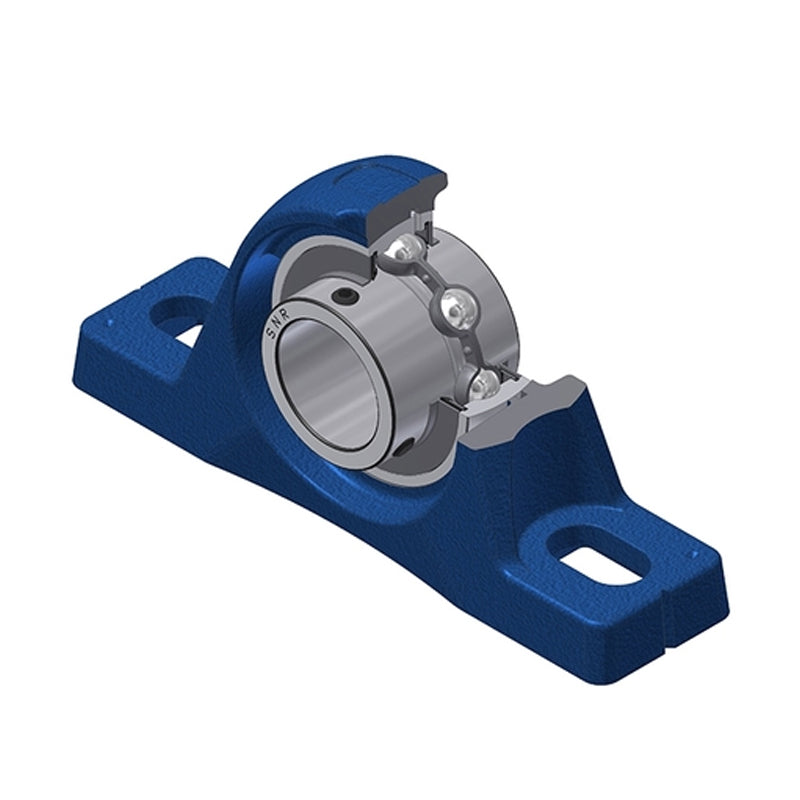

SNR UCPLE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- $34.59 ex VAT
- Sale price
- $34.59
- Regular price
-
In stock
Quantity Price Breaks
10+
$30.79
19+
$29.06
29+
$28.71
39+
$28.36
49+
$28.02
74+
$27.67
99+
$25.94
199+
$25.60
249+
$25.25
499+
$24.90
999+
$24.21
SKU:
UCPLE206-SNR
SNR UCPLE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
- Regular price
- $34.59 ex VAT
- Sale price
- $34.59
- Regular price
-
Description
UCPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 30mm |
| A | = | 41.5mm |
| A1 | = | 27.5mm |
| B | = | 38.1mm |
| H | = | 39.7mm |
| H1 | = | 14.5mm |
| H2 | = | 79.5mm |
| J | = | 119mm |
| L | = | 161.5mm |
| N | = | 14mm |
| N1 | = | 24.5mm |
| S | = | 15.9mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 1.12 kg |
