SKU: UCPH209-28

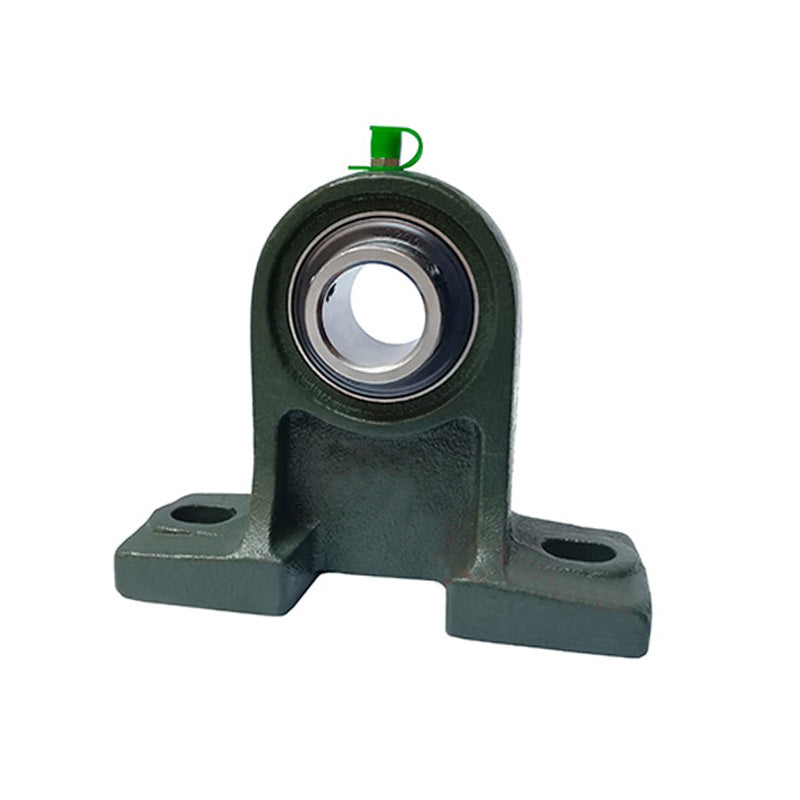

UCPH209-28 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Insert
- Regular price
- $53.68 ex VAT
- Sale price
- $53.68
- Regular price
-
In stock
Quantity Price Breaks
10+
$47.78
19+
$45.09
29+
$44.55
39+
$44.02
49+
$43.48
74+
$42.94
99+
$40.26
199+
$39.72
249+
$39.19
499+
$38.65
999+
$37.58
SKU:
UCPH209-28
UCPH209-28 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Insert
- Regular price
- $53.68 ex VAT
- Sale price
- $53.68
- Regular price
-
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-3/4 inch |
| h | = | 4-9/64 inch |
| a | = | 7-7/16 inch |
| e | = | 5-3/4 inch |
| b | = | 2-3/4 inch |
| s1 | = | 43/64 inch |
| s2 | = | 53/64 inch |
| g | = | 25/32 inch |
| w | = | 6-7/32 inch |
| B | = | 1.937 inch |
| n | = | 0.748 inch |
| Bolt size | = | 1/2 inch |
| Bearing no | = | UC209-28 |
| Housing no | = | PH209 |
| Weight | = | 2.69 kg |
