SKU: UCPH205-14

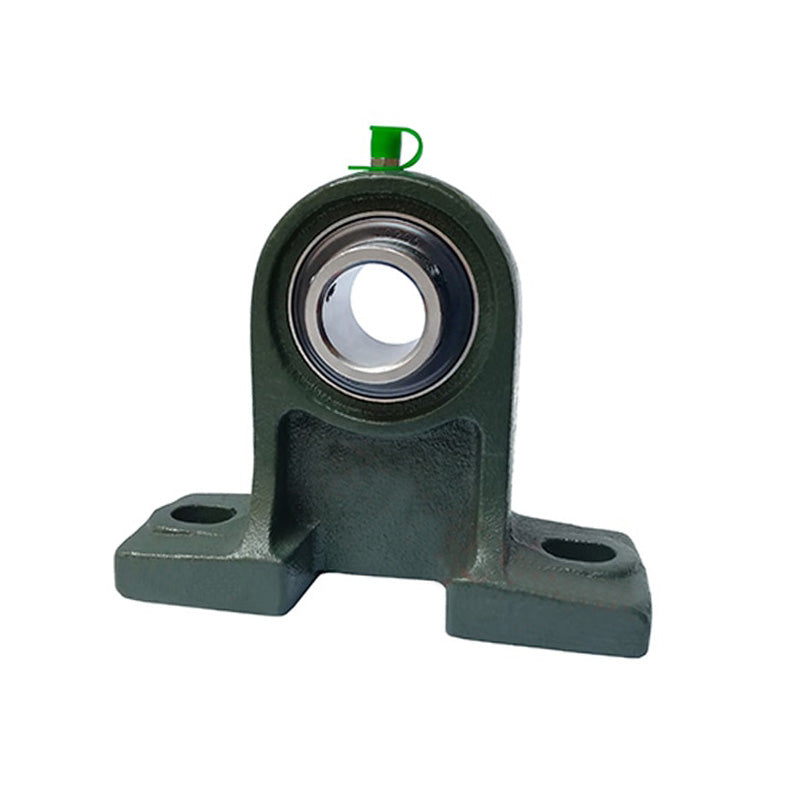

UCPH205-14 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 7/8 inch Insert
- Regular price
- $21.93 ex VAT
- Sale price
- $21.93
- Regular price
-
In stock
Quantity Price Breaks
10+
$19.52
19+
$18.42
29+
$18.20
39+
$17.98
49+
$17.76
74+
$17.54
99+
$16.45
199+
$16.23
249+
$16.01
499+
$15.79
999+
$15.35
SKU:
UCPH205-14
UCPH205-14 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 7/8 inch Insert
- Regular price
- $21.93 ex VAT
- Sale price
- $21.93
- Regular price
-
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 7/8 inch |
| h | = | 3-5/32 inch |
| a | = | 5-1/2 inch |
| e | = | 4-1/8 inch |
| b | = | 1-31/32 inch |
| s1 | = | 1/2 inch |
| s2 | = | 3/4 inch |
| g | = | 5/8 inch |
| w | = | 4-31/64 inch |
| B | = | 1.3425 inch |
| n | = | 0.563 inch |
| Bolt size | = | 3/8 inch |
| Bearing no | = | UC205-14 |
| Housing no | = | PH205 |
| Weight | = | 1.07 kg |
