SKU: UCPG212-SNR

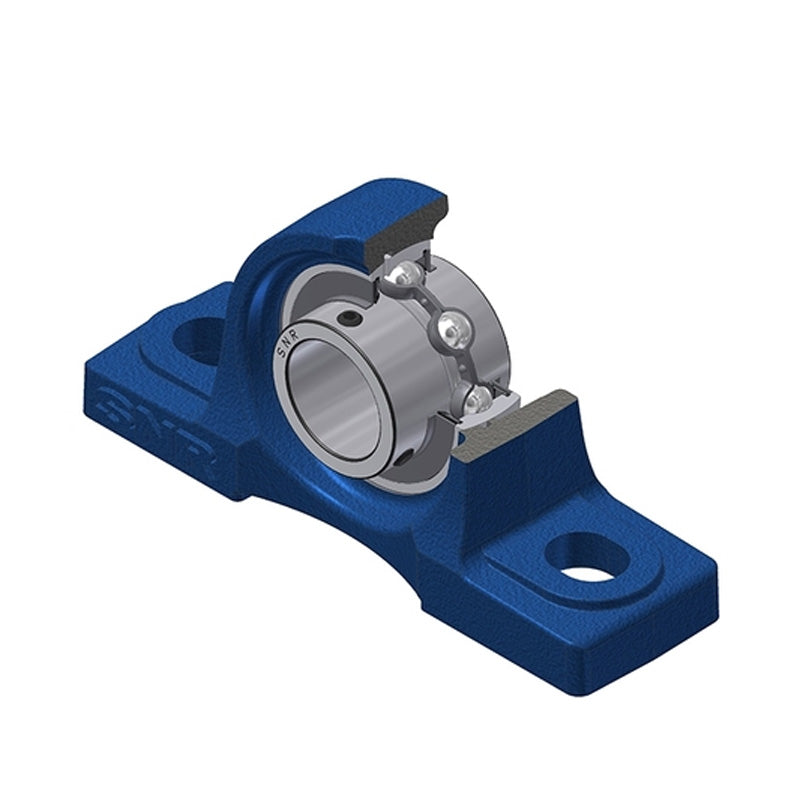

SNR UCPG212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
- Regular price
- $91.61 ex VAT
- Sale price
- $91.61
- Regular price
-
In stock
Quantity Price Breaks
10+
$81.53
19+
$76.95
29+
$76.04
39+
$75.12
49+
$74.20
74+
$73.29
99+
$68.71
199+
$67.79
249+
$66.88
499+
$65.96
999+
$64.13
SKU:
UCPG212-SNR
SNR UCPG212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
- Regular price
- $91.61 ex VAT
- Sale price
- $91.61
- Regular price
-
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

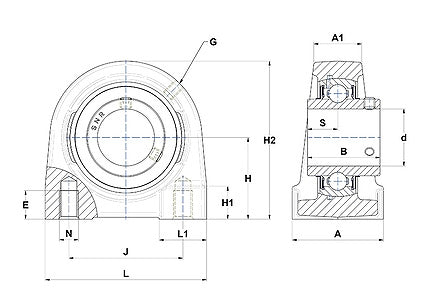

| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| A | = | 70mm |
| A1 | = | 40mm |
| B | = | 65.1mm |
| E | = | 25mm |
| H | = | 69.8mm |
| H1 | = | 25mm |
| H2 | = | 138mm |
| J | = | 105mm |
| L | = | 150mm |
| L1 | = | 50mm |
| N | = | M16 |
| S | = | 25.4mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 4.63 kg |
