SKU: UCPG211-SNR

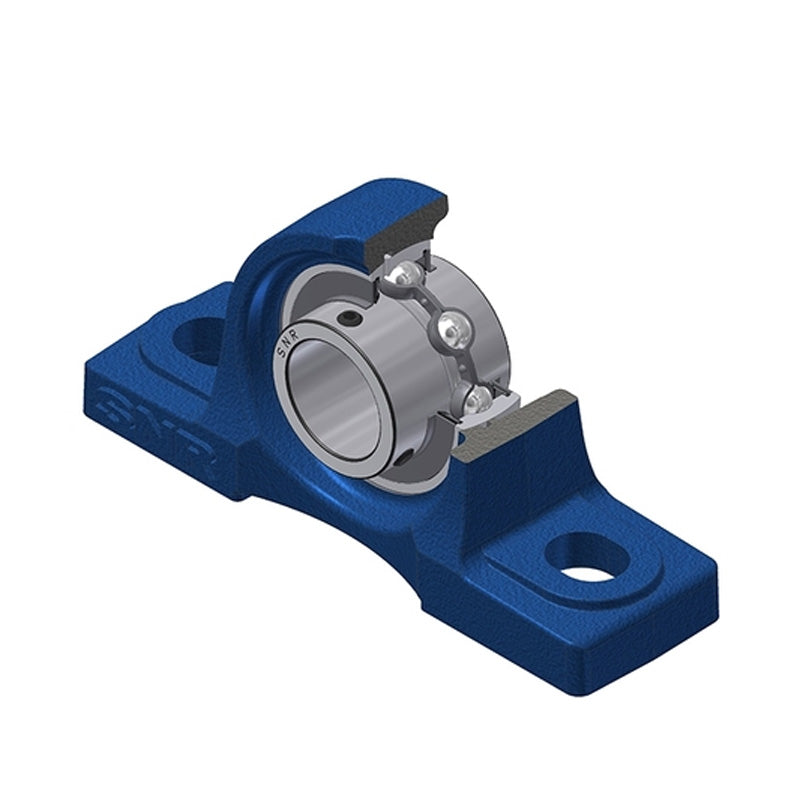

SNR UCPG211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
- Regular price
- $71.37 ex VAT
- Sale price
- $71.37
- Regular price
-
In stock
Quantity Price Breaks
10+
$63.52
19+
$59.95
29+
$59.24
39+
$58.52
49+
$57.81
74+
$57.10
99+
$53.53
199+
$52.81
249+
$52.10
499+
$51.39
999+
$49.96
SKU:
UCPG211-SNR
SNR UCPG211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
- Regular price
- $71.37 ex VAT
- Sale price
- $71.37
- Regular price
-
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 55mm |
| A | = | 60mm |
| A1 | = | 34mm |
| B | = | 55.6mm |
| E | = | 25mm |
| H | = | 63.5mm |
| H1 | = | 25mm |
| H2 | = | 126mm |
| J | = | 100mm |
| L | = | 140mm |
| L1 | = | 40mm |
| N | = | M16 |
| S | = | 22.2mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.42 kg |
