SKU: UCPG210N-SNR

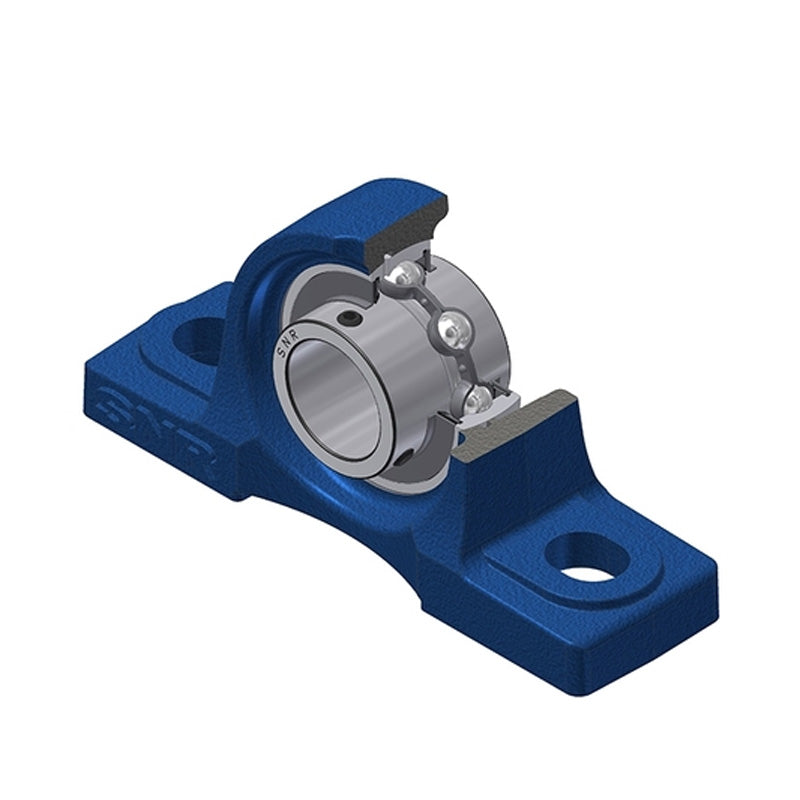

SNR UCPG210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $78.49 ex VAT
- Sale price
- $78.49
- Regular price
-
In stock
Quantity Price Breaks
10+
$69.86
19+
$65.93
29+
$65.15
39+
$64.36
49+
$63.58
74+
$62.79
99+
$58.87
199+
$58.08
249+
$57.30
499+
$56.51
999+
$54.94
SKU:
UCPG210N-SNR
SNR UCPG210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $78.49 ex VAT
- Sale price
- $78.49
- Regular price
-
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

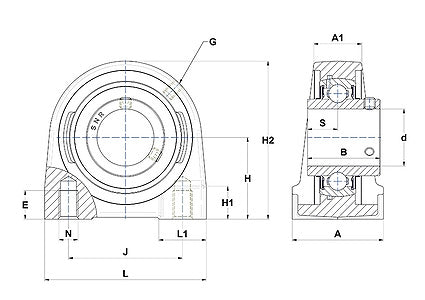

| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| A | = | 60mm |
| A1 | = | 35mm |
| B | = | 51.6mm |
| E | = | 25mm |
| H | = | 57.2mm |
| H1 | = | 21mm |
| H2 | = | 114mm |
| J | = | 95mm |
| L | = | 135mm |
| L1 | = | 40mm |
| N | = | M16 |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 2.7 kg |
