SKU: UCPG205-SNR
SNR UCPG205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
- Regular price
- $34.59 ex VAT
- Sale price
- $34.59
- Regular price
-
In stock
Quantity Price Breaks
10+
$30.79
19+
$29.06
29+
$28.71
39+
$28.36
49+
$28.02
74+
$27.67
99+
$25.94
199+
$25.60
249+
$25.25
499+
$24.90
999+
$24.21
SKU:
UCPG205-SNR
SNR UCPG205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
- Regular price
- $34.59 ex VAT
- Sale price
- $34.59
- Regular price
-
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

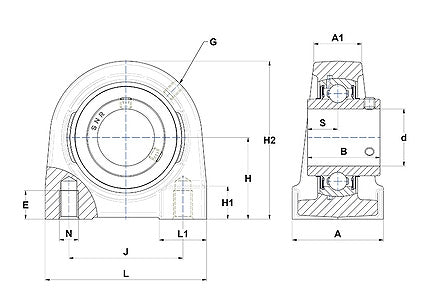

| --- | = | Dimensions |
| Shaft diameter | = | 25mm |
| A | = | 38mm |
| A1 | = | 25mm |
| B | = | 34mm |
| E | = | 18mm |
| H | = | 36.5mm |
| H1 | = | 15mm |
| H2 | = | 70mm |
| J | = | 50mm |
| L | = | 75mm |
| L1 | = | 25mm |
| N | = | M10 |
| S | = | 14.3mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.71 kg |
