SKU: UCPE218-SNR

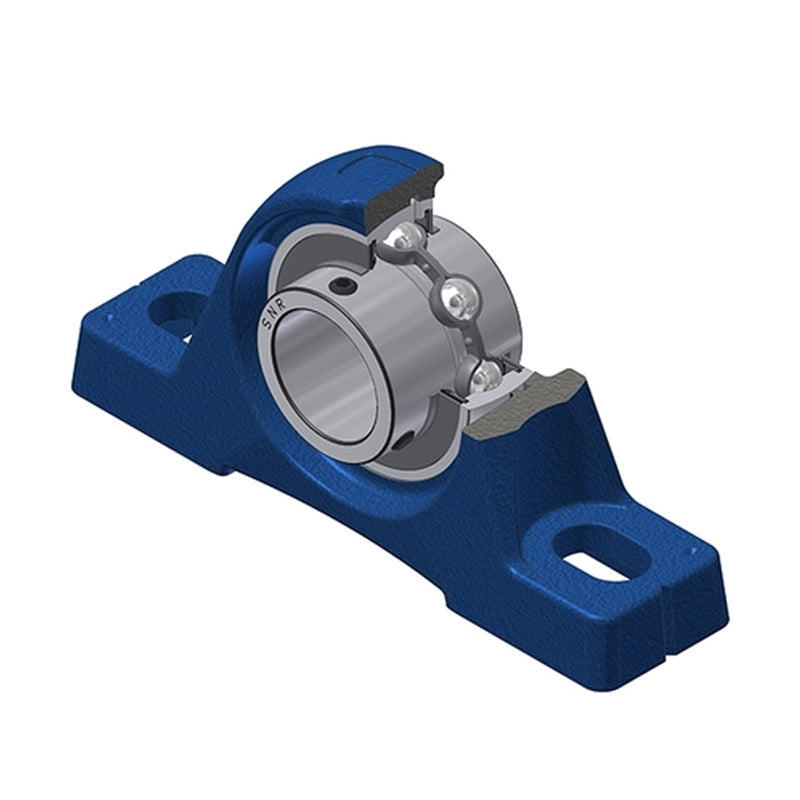

SNR UCPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
- Regular price
- $290.55 ex VAT
- Sale price
- $290.55
- Regular price
-
In stock
Quantity Price Breaks
10+
$258.59
19+
$244.06
29+
$241.16
39+
$238.25
49+
$235.35
74+
$232.44
99+
$217.91
199+
$215.01
249+
$212.10
499+
$209.20
999+
$203.39
SKU:
UCPE218-SNR
SNR UCPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
- Regular price
- $290.55 ex VAT
- Sale price
- $290.55
- Regular price
-
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 90mm |
| A | = | 85mm |
| A1 | = | 55mm |
| B | = | 96mm |
| H | = | 101.6mm |
| H1 | = | 35mm |
| H2 | = | 200mm |
| J | = | 268mm |
| L | = | 330mm |
| L1 | = | 99mm |
| N | = | 27mm |
| N1 | = | 35mm |
| S | = | 39.7mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 96 kN |
| Static load C0 | = | 71.5 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 13.55 kg |
