SKU: UCPE216-SNR

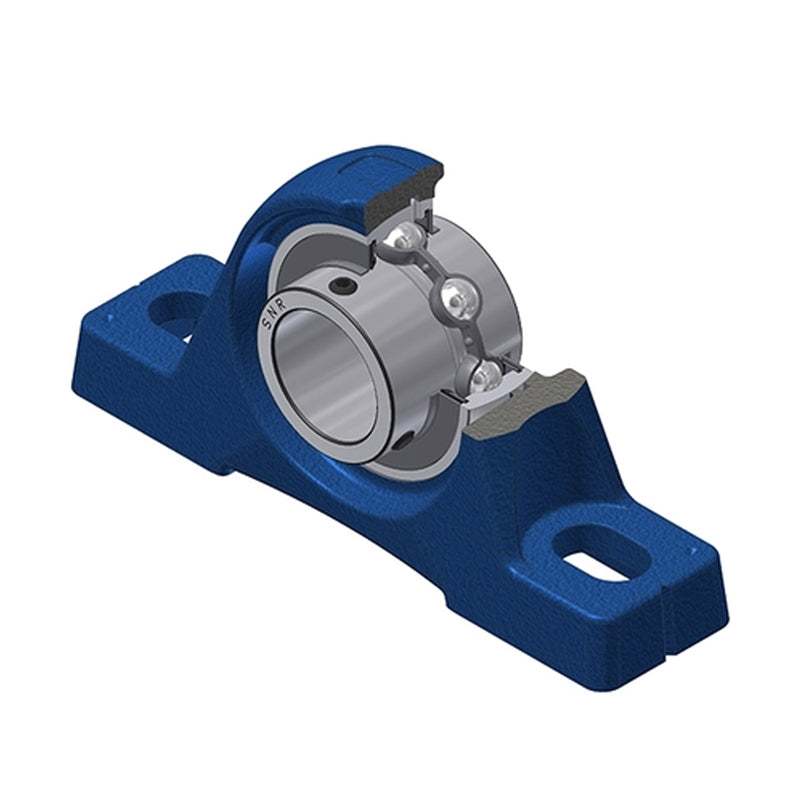

SNR UCPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
- Regular price
- $181.64 ex VAT
- Sale price
- $181.64
- Regular price
-
In stock
Quantity Price Breaks
10+
$161.66
19+
$152.58
29+
$150.76
39+
$148.94
49+
$147.13
74+
$145.31
99+
$136.23
199+
$134.41
249+
$132.60
499+
$130.78
999+
$127.15
SKU:
UCPE216-SNR
SNR UCPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
- Regular price
- $181.64 ex VAT
- Sale price
- $181.64
- Regular price
-
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 80mm |
| A | = | 78mm |
| A1 | = | 55mm |
| B | = | 82.6mm |
| H | = | 89mm |
| H1 | = | 30mm |
| H2 | = | 175mm |
| J | = | 232mm |
| L | = | 290mm |
| L1 | = | 90mm |
| N | = | 26mm |
| N1 | = | 34mm |
| S | = | 33.3mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 72.5 kN |
| Static load C0 | = | 54.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 9.09 kg |
