SKU: UCPE215-48-SNR

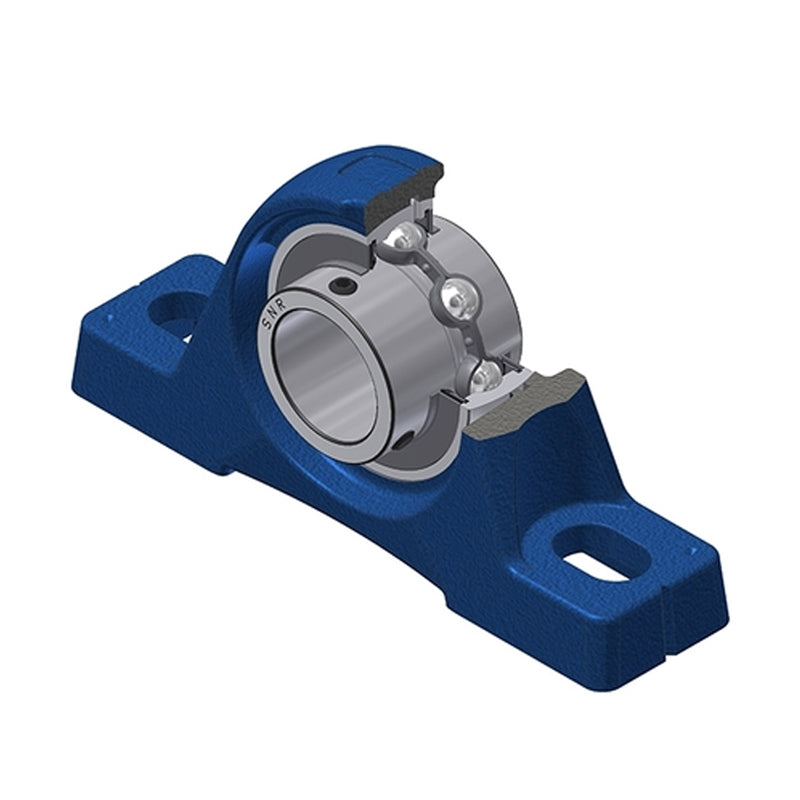

SNR UCPE215-48 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3 inch Bore Insert - Allow 2-3 Days
- Regular price
- $155.69 ex VAT
- Sale price
- $155.69
- Regular price
-
In stock
Quantity Price Breaks
10+
$138.56
19+
$130.78
29+
$129.22
39+
$127.67
49+
$126.11
74+
$124.55
99+
$116.77
199+
$115.21
249+
$113.65
499+
$112.10
999+
$108.98
SKU:
UCPE215-48-SNR
SNR UCPE215-48 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3 inch Bore Insert - Allow 2-3 Days
- Regular price
- $155.69 ex VAT
- Sale price
- $155.69
- Regular price
-
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 3mm |
| A | = | 66mm |
| A1 | = | 48mm |
| B | = | 77.8mm |
| H | = | 82.5mm |
| H1 | = | 27.5mm |
| H2 | = | 164mm |
| J | = | 210mm |
| L | = | 265mm |
| L1 | = | 78mm |
| N | = | 22mm |
| N1 | = | 30mm |
| S | = | 33.3mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 66 kN |
| Static load C0 | = | 49.5 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 27.1 Nm |
| Mass | = | 6.83 kg |
