SKU: UCPE214-44-SNR

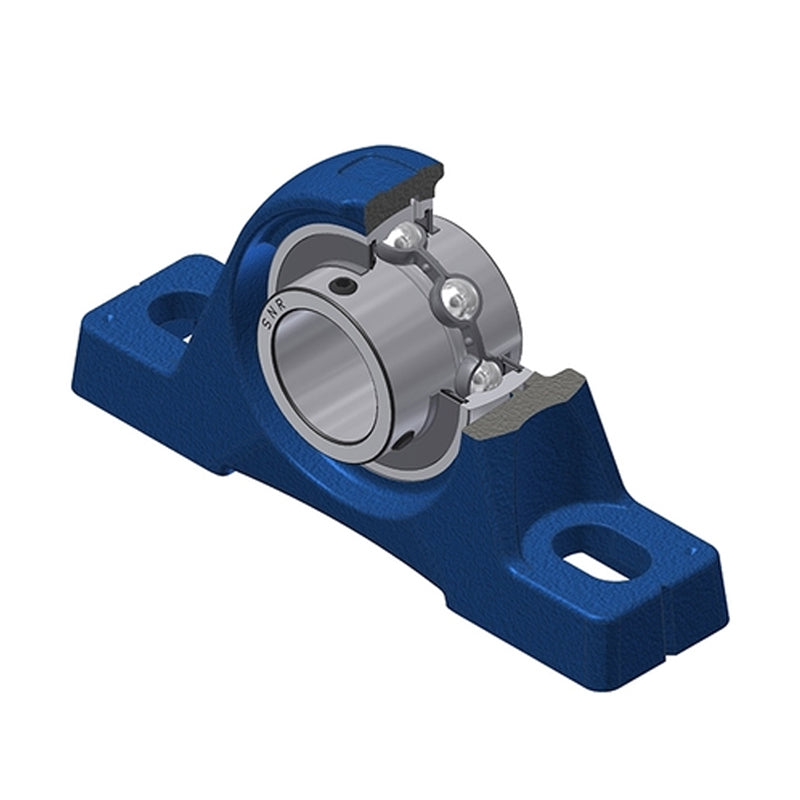

SNR UCPE214-44 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/4 inch Bore Insert - Allow 2-3 Days
- Regular price
- $140.56 ex VAT
- Sale price
- $140.56
- Regular price
-
In stock
Quantity Price Breaks
10+
$125.10
19+
$118.07
29+
$116.66
39+
$115.26
49+
$113.85
74+
$112.45
99+
$105.42
199+
$104.01
249+
$102.61
499+
$101.20
999+
$98.39
SKU:
UCPE214-44-SNR
SNR UCPE214-44 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/4 inch Bore Insert - Allow 2-3 Days
- Regular price
- $140.56 ex VAT
- Sale price
- $140.56
- Regular price
-
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 2-3/4mm |
| A | = | 65mm |
| A1 | = | 44mm |
| B | = | 74.6mm |
| H | = | 79.4mm |
| H1 | = | 27.5mm |
| H2 | = | 156mm |
| J | = | 203mm |
| L | = | 260mm |
| L1 | = | 77mm |
| N | = | 22mm |
| N1 | = | 28mm |
| S | = | 30.2mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 62 kN |
| Static load C0 | = | 45 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 27.1 Nm |
| Mass | = | 6.16 kg |
