SKU: UCPE210-31NL3-SNR

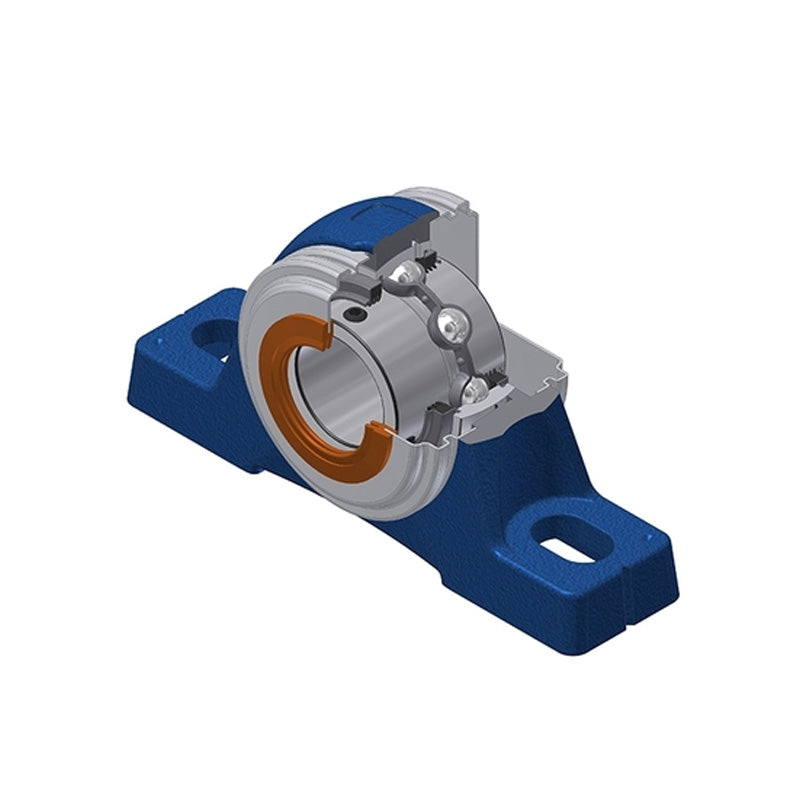

SNR UCPE210-31NL3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
- Regular price
- $94.46 ex VAT
- Sale price
- $94.46
- Regular price
-
In stock
Quantity Price Breaks
10+
$84.07
19+
$79.35
29+
$78.40
39+
$77.46
49+
$76.51
74+
$75.57
99+
$70.85
199+
$69.90
249+
$68.96
499+
$68.01
999+
$66.12
SKU:
UCPE210-31NL3-SNR
SNR UCPE210-31NL3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
- Regular price
- $94.46 ex VAT
- Sale price
- $94.46
- Regular price
-
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 1-15/16mm |
| A | = | 54mm |
| A1 | = | 34mm |
| B | = | 51.6mm |
| H | = | 57.2mm |
| H1 | = | 21.5mm |
| H2 | = | 115mm |
| J | = | 158mm |
| L | = | 200mm |
| L1 | = | 61mm |
| N | = | 18mm |
| N1 | = | 23mm |
| S | = | 19mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 16.8 Nm |
| Mass | = | 2.62 kg |
