SKU: UCPE205-16-SNR

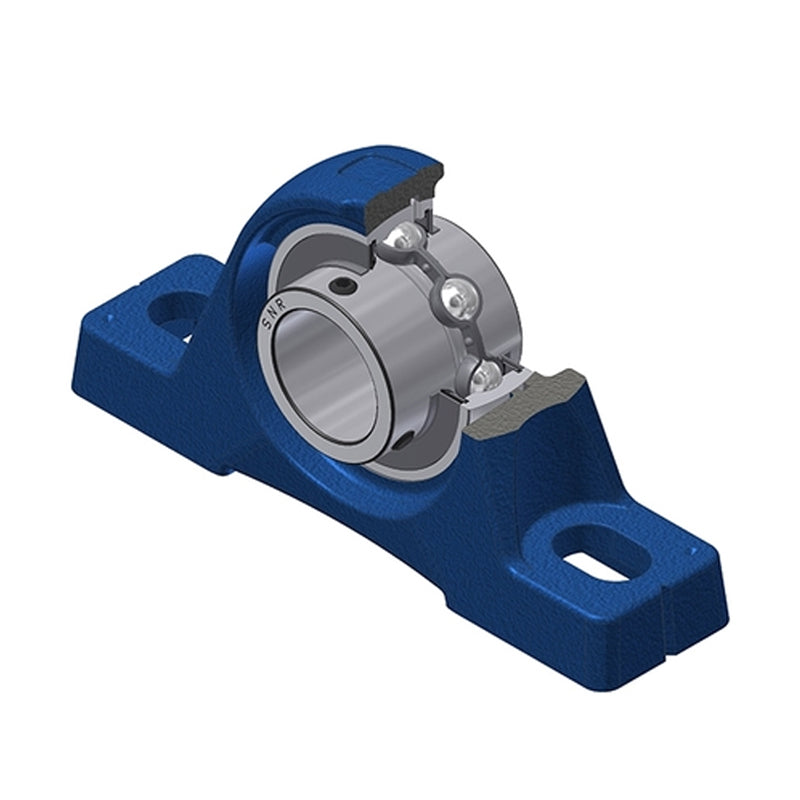

SNR UCPE205-16 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Insert
- Regular price
- $30.27 ex VAT
- Sale price
- $30.27
- Regular price
-
In stock
Quantity Price Breaks
10+
$26.94
19+
$25.43
29+
$25.12
39+
$24.82
49+
$24.52
74+
$24.22
99+
$22.70
199+
$22.40
249+
$22.10
499+
$21.79
999+
$21.19
SKU:
UCPE205-16-SNR
SNR UCPE205-16 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Insert
- Regular price
- $30.27 ex VAT
- Sale price
- $30.27
- Regular price
-
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

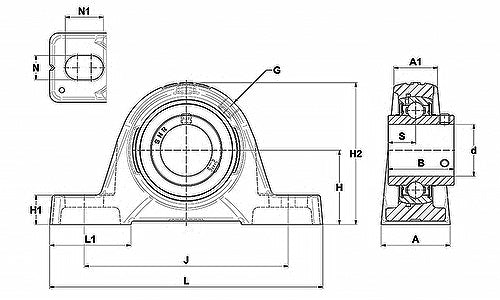

| --- | = | Dimensions |
| Shaft diameter | = | 1mm |
| A | = | 36mm |
| A1 | = | 21mm |
| B | = | 34mm |
| H | = | 36.5mm |
| H1 | = | 14.5mm |
| H2 | = | 70mm |
| J | = | 103mm |
| L | = | 130mm |
| L1 | = | 39mm |
| N | = | 11mm |
| N1 | = | 19mm |
| S | = | 14.3mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 3.7 Nm |
| Mass | = | 0.7 kg |
