SKU: UCPE202-10-SNR

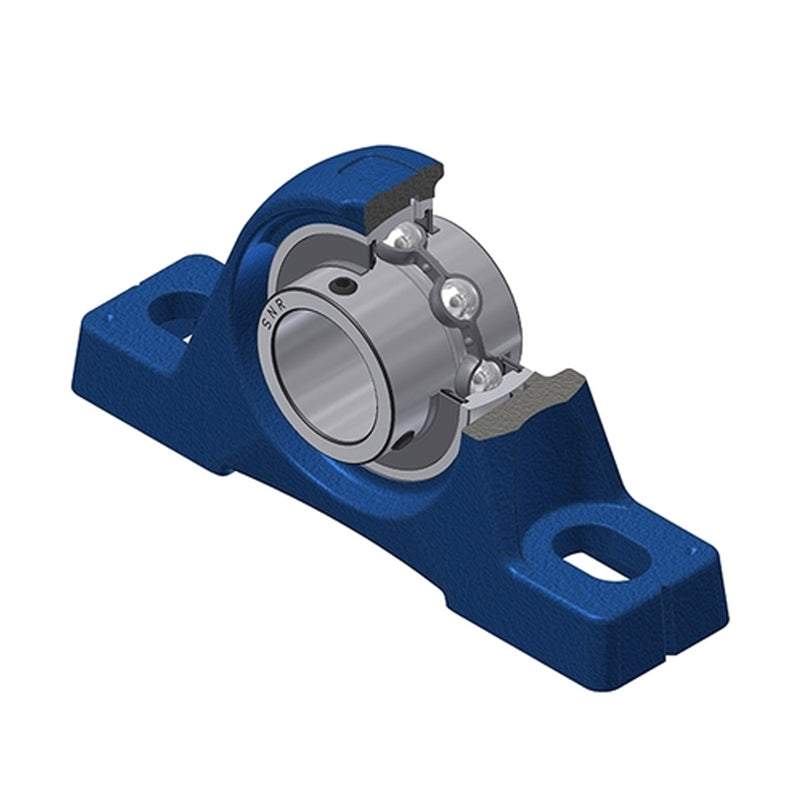

SNR UCPE202-10 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 5/8 inch Bore Insert - Allow 2-3 Days
- Regular price
- $26.53 ex VAT
- Sale price
- $26.53
- Regular price
-
In stock
Quantity Price Breaks
10+
$23.61
19+
$22.29
29+
$22.02
39+
$21.75
49+
$21.49
74+
$21.22
99+
$19.90
199+
$19.63
249+
$19.37
499+
$19.10
999+
$18.57
SKU:
UCPE202-10-SNR
SNR UCPE202-10 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 5/8 inch Bore Insert - Allow 2-3 Days
- Regular price
- $26.53 ex VAT
- Sale price
- $26.53
- Regular price
-
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 5/8mm |
| A | = | 32mm |
| A1 | = | 19mm |
| B | = | 31mm |
| H | = | 33.3mm |
| H1 | = | 14.5mm |
| H2 | = | 64mm |
| J | = | 97mm |
| L | = | 130mm |
| L1 | = | 40mm |
| N | = | 11mm |
| N1 | = | 19mm |
| S | = | 12.7mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 3.7 Nm |
| Mass | = | 0.6 kg |
