SKU: UCP322D1-NTN

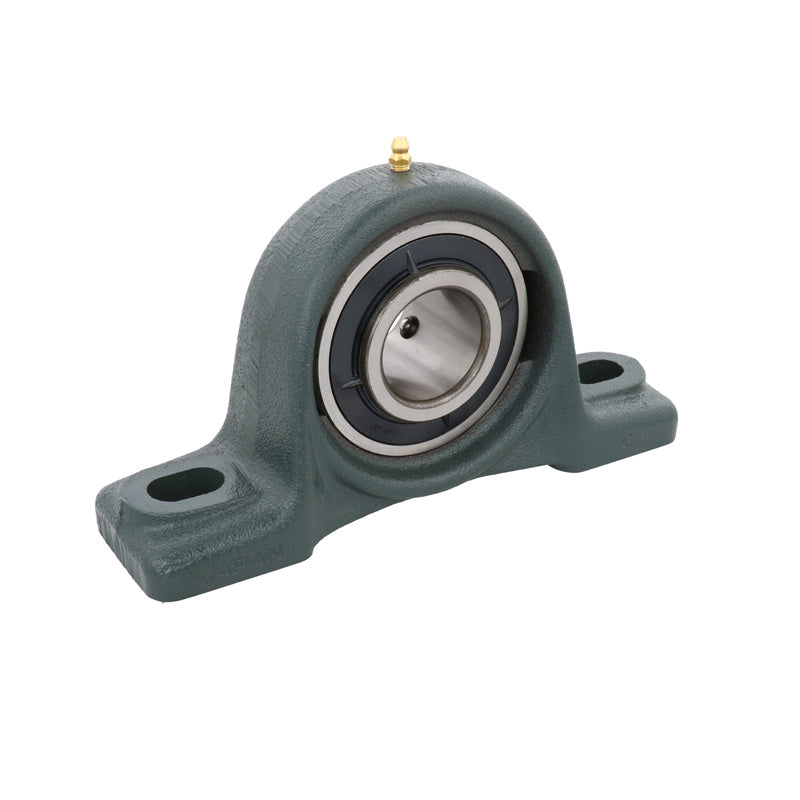

NTN UCP322D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 110mm Bore Insert - Allow 2-3 Days
- Regular price
- $710.93 ex VAT
- Sale price
- $710.93
- Regular price
-
In stock
Quantity Price Breaks
10+
$632.73
19+
$597.18
29+
$590.07
39+
$582.96
49+
$575.85
74+
$568.74
99+
$533.20
199+
$526.09
249+
$518.98
499+
$511.87
999+
$497.65
SKU:
UCP322D1-NTN
NTN UCP322D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 110mm Bore Insert - Allow 2-3 Days
- Regular price
- $710.93 ex VAT
- Sale price
- $710.93
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 110mm |
| H | = | 150mm |
| L | = | 520mm |
| J | = | 400mm |
| A | = | 140mm |
| N | = | 40mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 55mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 55mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 300mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 135mm | |
| B | = | 117mm |
| S | = | 46mm |
| Fixing bolt | = | M33 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 227 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 179 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 10.5 kN | |
| --- | = | Unit information |
| Mass | = | 43 kg |
