SKU: UCP317D1-NTN

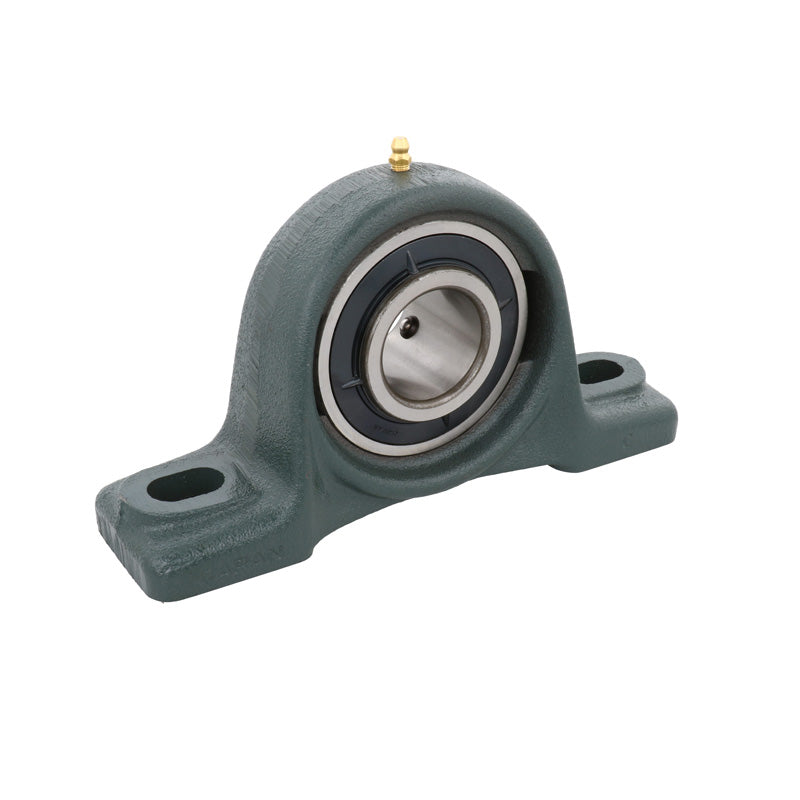

NTN UCP317D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
- Regular price
- $348.79 ex VAT
- Sale price
- $348.79
- Regular price
-
In stock
Quantity Price Breaks
10+
$310.42
19+
$292.98
29+
$289.50
39+
$286.01
49+
$282.52
74+
$279.03
99+
$261.59
199+
$258.10
249+
$254.62
499+
$251.13
999+
$244.15
SKU:
UCP317D1-NTN
NTN UCP317D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
- Regular price
- $348.79 ex VAT
- Sale price
- $348.79
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 85mm |
| H | = | 112mm |
| L | = | 420mm |
| J | = | 320mm |
| A | = | 110mm |
| N | = | 33mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 45mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 40mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 220mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 120mm | |
| B | = | 96mm |
| S | = | 40mm |
| Fixing bolt | = | M27 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 147 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 97 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 6.55 kN | |
| --- | = | Unit information |
| Mass | = | 19 kg |
