SKU: UCP311D1-NTN

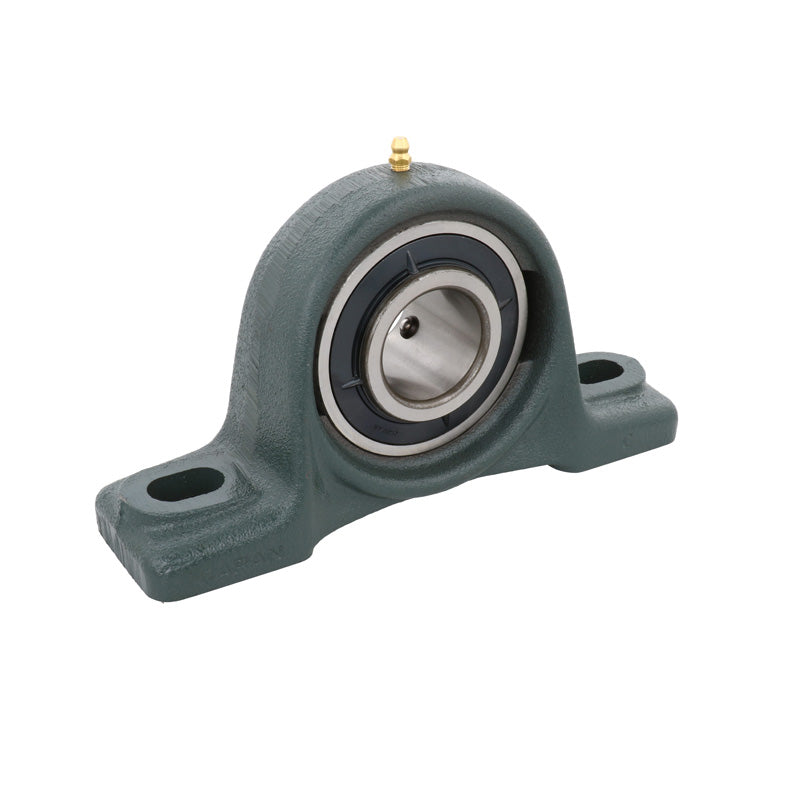

NTN UCP311D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
- Regular price
- $138.09 ex VAT
- Sale price
- $138.09
- Regular price
-
In stock
Quantity Price Breaks
10+
$122.90
19+
$116.00
29+
$114.61
39+
$113.23
49+
$111.85
74+
$110.47
99+
$103.57
199+
$102.19
249+
$100.81
499+
$99.42
999+
$96.66
SKU:
UCP311D1-NTN
NTN UCP311D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
- Regular price
- $138.09 ex VAT
- Sale price
- $138.09
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical

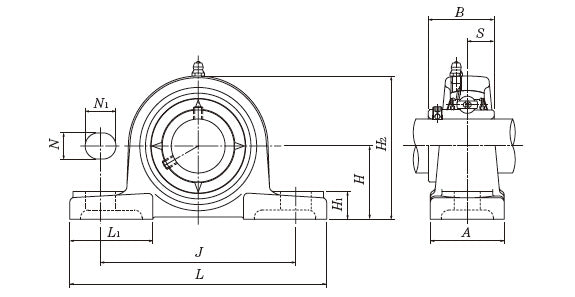

| --- | = | Dimensions |
| Shaft diameter | = | 55mm |
| H | = | 80mm |
| L | = | 310mm |
| J | = | 236mm |
| A | = | 80mm |
| N | = | 20mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 38mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 154mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 85mm | |
| B | = | 66mm |
| S | = | 25mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 79.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 45 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.5 kN | |
| --- | = | Unit information |
| Mass | = | 7.3 kg |
