SKU: UCP311-203D1-NTN

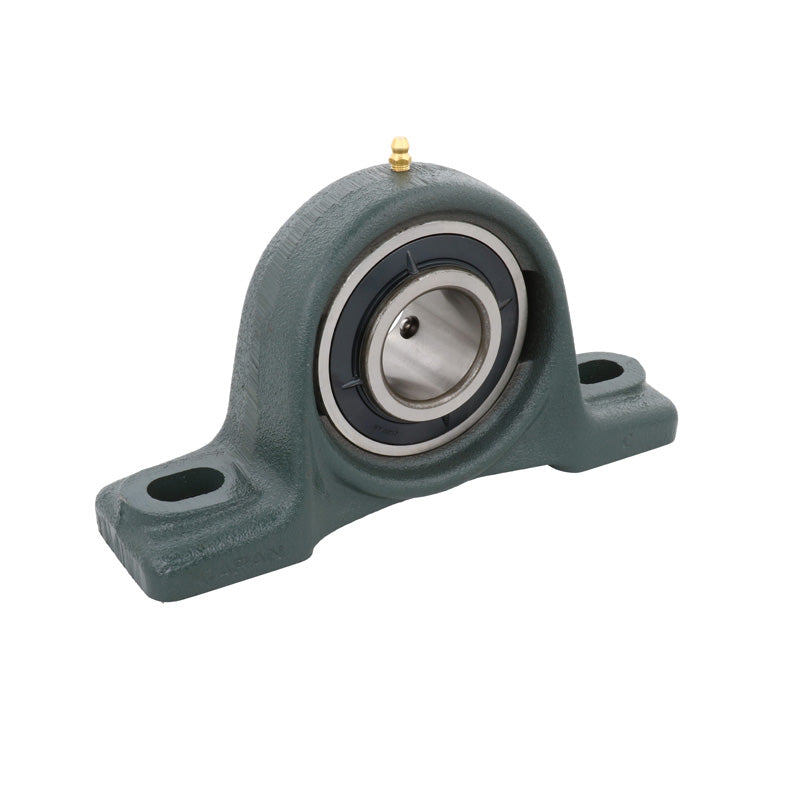

NTN UCP311-203D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $184.86 ex VAT
- Sale price
- $184.86
- Regular price
-
In stock
Quantity Price Breaks
10+
$164.53
19+
$155.28
29+
$153.43
39+
$151.59
49+
$149.74
74+
$147.89
99+
$138.65
199+
$136.80
249+
$134.95
499+
$133.10
999+
$129.40
SKU:
UCP311-203D1-NTN
NTN UCP311-203D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Bore Insert - Allow 2-3 Days
- Regular price
- $184.86 ex VAT
- Sale price
- $184.86
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 2-3/16 inch |
| H | = | 3-5/32 inch |
| L | = | 12-7/32 inch |
| J | = | 9-9/32 inch |
| A | = | 3-5/32 inch |
| N | = | 25/32 inch |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 1-1/2 inch | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 1-3/16 inch | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 6-1/16 inch | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 3-11/32 inch | |
| B | = | 2.5984 inch |
| S | = | 0.984 inch |
| Fixing bolt | = | 5/8 inch |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 79.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 45 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 3.5 kN | |
| --- | = | Unit information |
| Mass | = | 16 lbs |
