SKU: UCP310D1-NTN

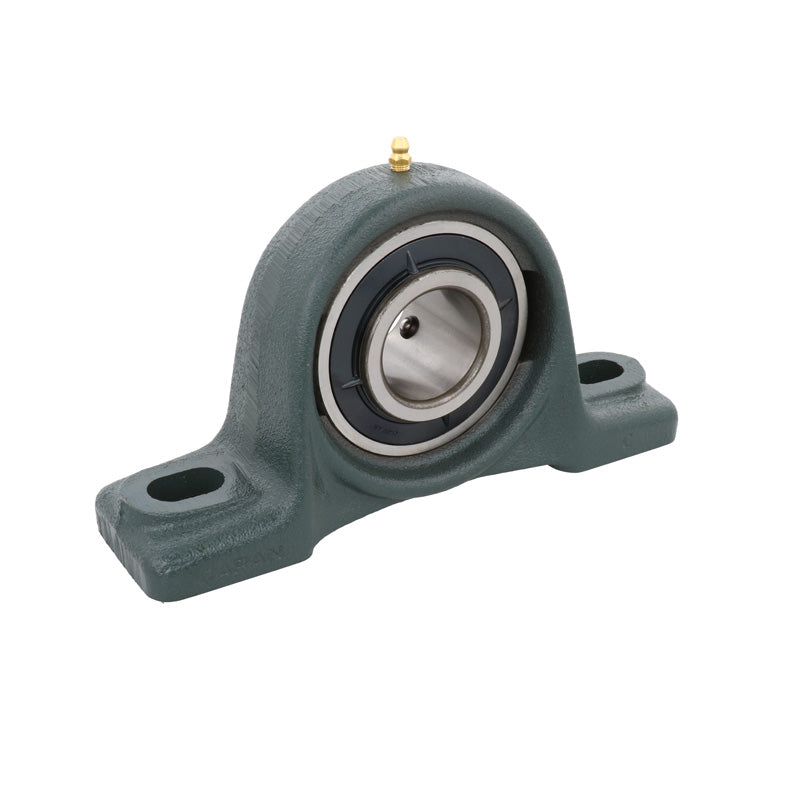

NTN UCP310D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $113.59 ex VAT
- Sale price
- $113.59
- Regular price
-
In stock
Quantity Price Breaks
10+
$101.10
19+
$95.42
29+
$94.28
39+
$93.14
49+
$92.01
74+
$90.87
99+
$85.19
199+
$84.06
249+
$82.92
499+
$81.78
999+
$79.51
SKU:
UCP310D1-NTN
NTN UCP310D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- $113.59 ex VAT
- Sale price
- $113.59
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| H | = | 75mm |
| L | = | 275mm |
| J | = | 212mm |
| A | = | 75mm |
| N | = | 20mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 35mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 27mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 143mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 75mm | |
| B | = | 61mm |
| S | = | 22mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 68.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 38.5 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 2.99 kN | |
| --- | = | Unit information |
| Mass | = | 5.6 kg |
