SKU: UCP309D1-NTN

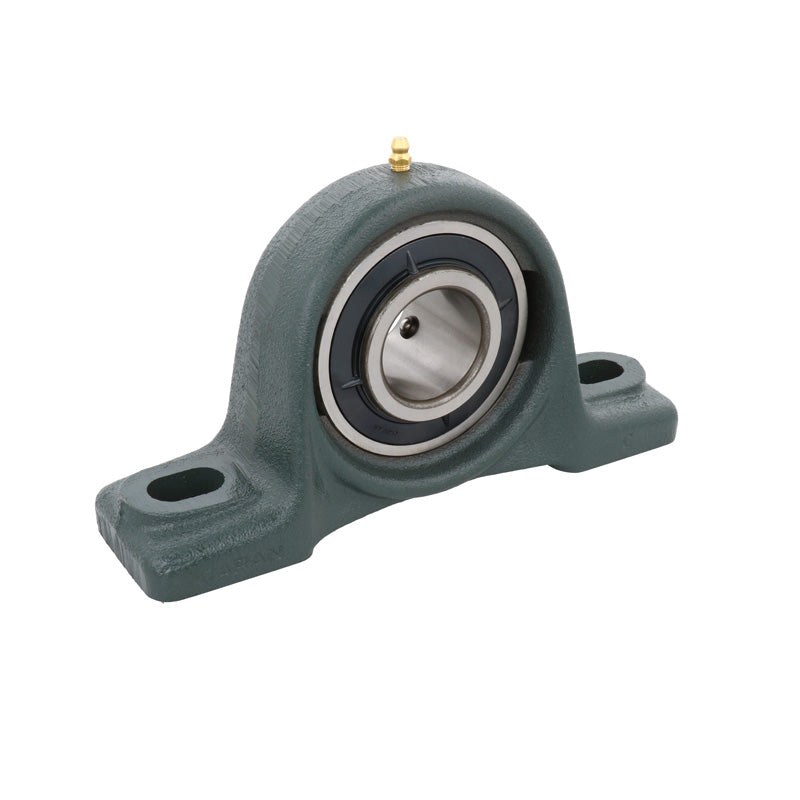

NTN UCP309D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- $94.37 ex VAT
- Sale price
- $94.37
- Regular price
-
In stock
Quantity Price Breaks
10+
$83.99
19+
$79.27
29+
$78.33
39+
$77.38
49+
$76.44
74+
$75.50
99+
$70.78
199+
$69.83
249+
$68.89
499+
$67.95
999+
$66.06
SKU:
UCP309D1-NTN
NTN UCP309D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- $94.37 ex VAT
- Sale price
- $94.37
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 45mm |
| H | = | 67mm |
| L | = | 245mm |
| J | = | 190mm |
| A | = | 67mm |
| N | = | 20mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 24mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 129mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 65mm | |
| B | = | 57mm |
| S | = | 22mm |
| Fixing bolt | = | M16 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 58.5 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 32 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 2.5 kN | |
| --- | = | Unit information |
| Mass | = | 4.1 kg |
